SPECIFICATIONS

Brand Name: ELFINEAR

Hign-concerned Chemical: None

Item Type: speaker unit

Material: Plastic

Model Number: ED12

Origin: Mainland China

Package: Yes

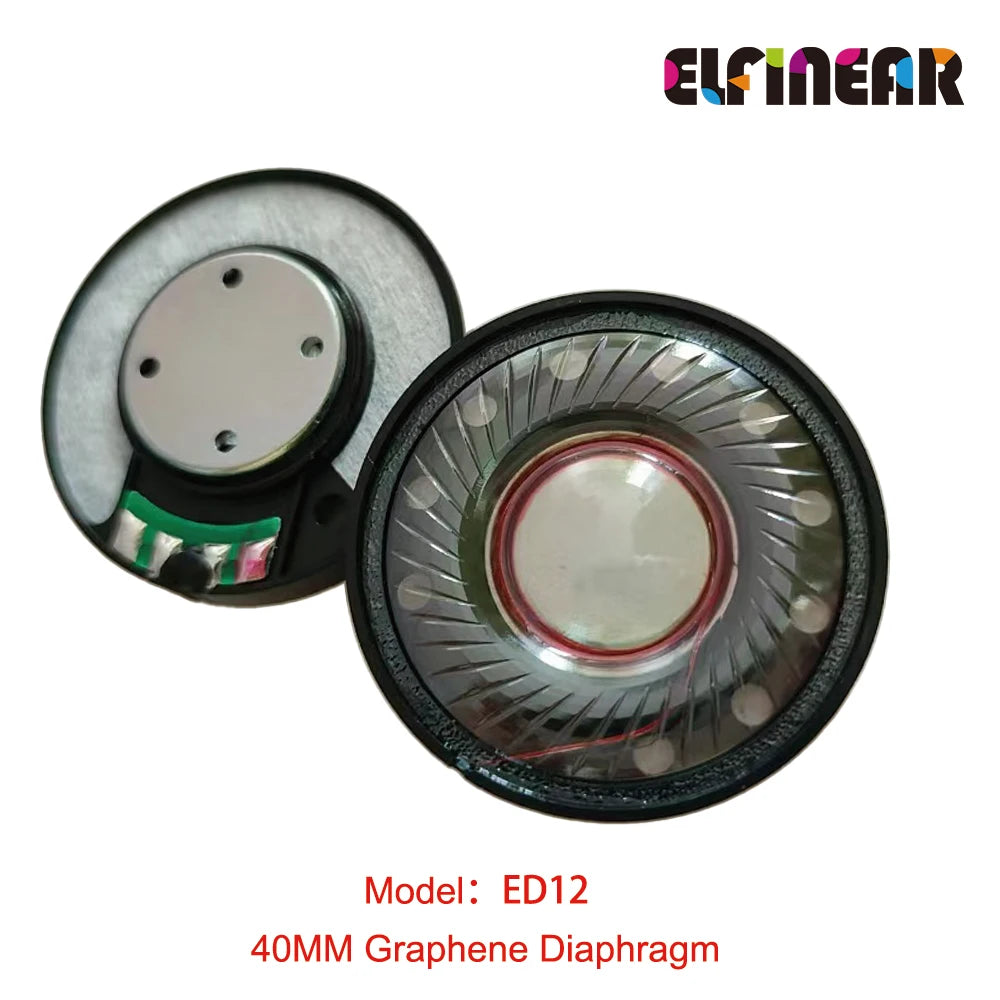

Model No.:ED12

### Product Specifications:

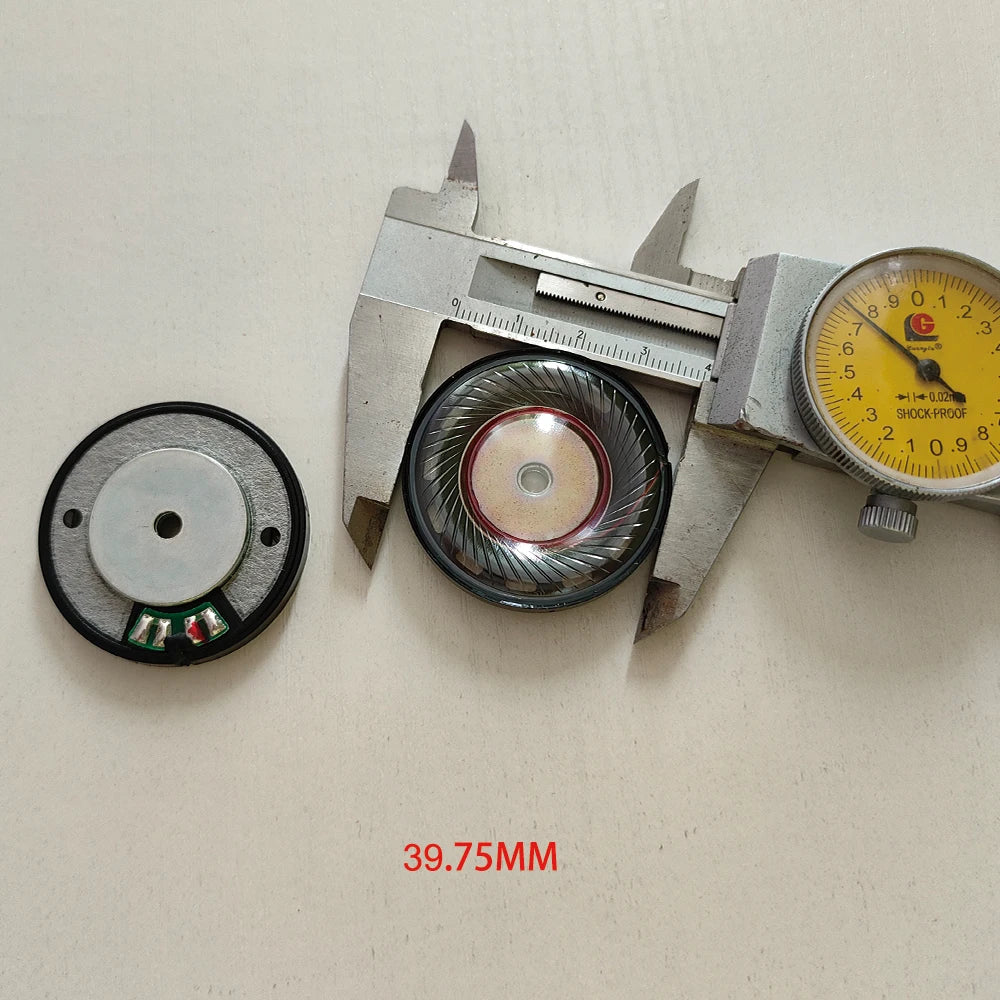

- **Driver Size**: 40mm

- **Impedance**: 32Ω

- **Power**: 10mW

- **Frequency Response**: Full-range

- **Diaphragm Material**: Graphene

- **Voice Coil**: 16-core

- **Magnet Type**: N35

Product Highlights Bullet Points:

- **Graphene Diaphragm**: Provides excellent rigidity and lightweight properties for delicate high-frequency performance and a wide dynamic range.

- **16-Core Voice Coil**: Enhances driving efficiency and low-frequency control, delivering a rich bass experience.

- **N35 Magnet**: Ensures strong magnetic force for improved sensitivity and precise sound detail reproduction.

- **Enhanced Mid-Low Frequency**: Warm male vocals with an emphasis on mid-lows, ideal for audiophiles who prefer richer midrange and bass.

- **Full-Range Driver**: Despite its focus on mid-low frequencies, the graphene diaphragm ensures high-frequency clarity and extension, making it suitable for a wide range of music genres.

### Product Description:

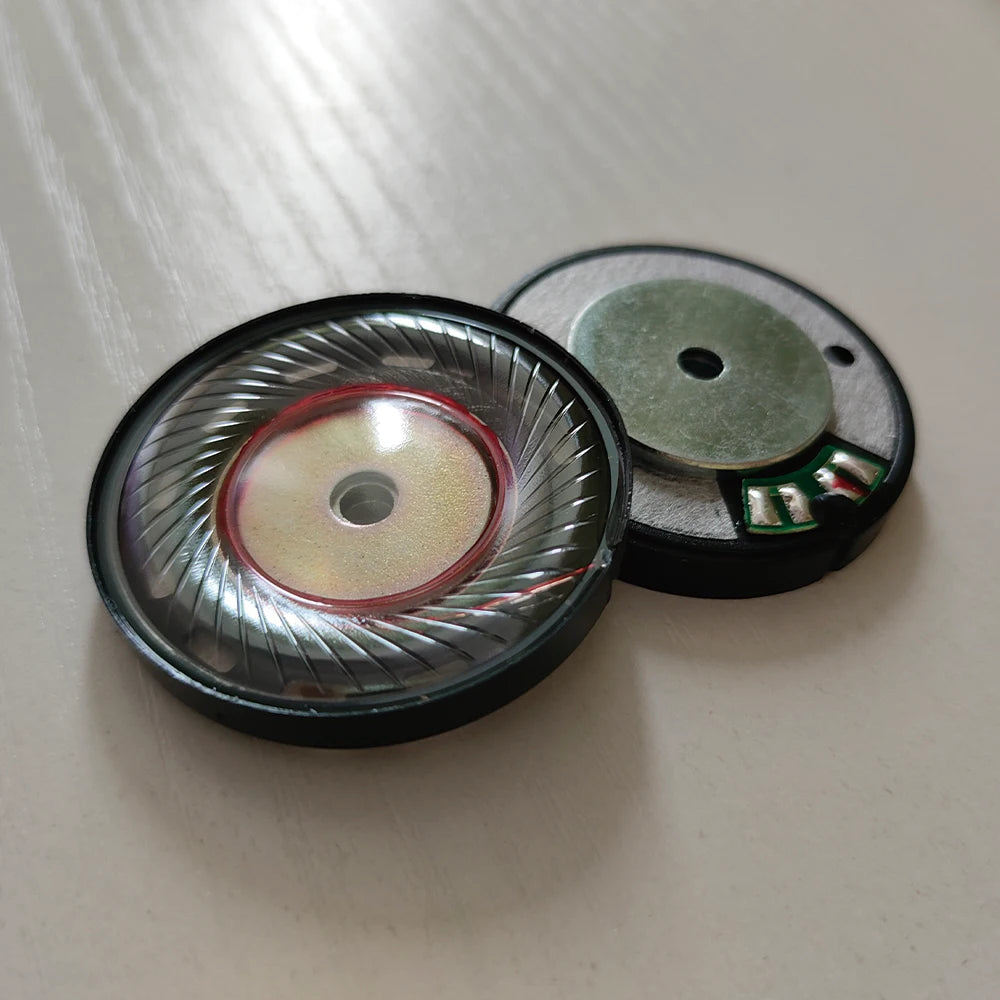

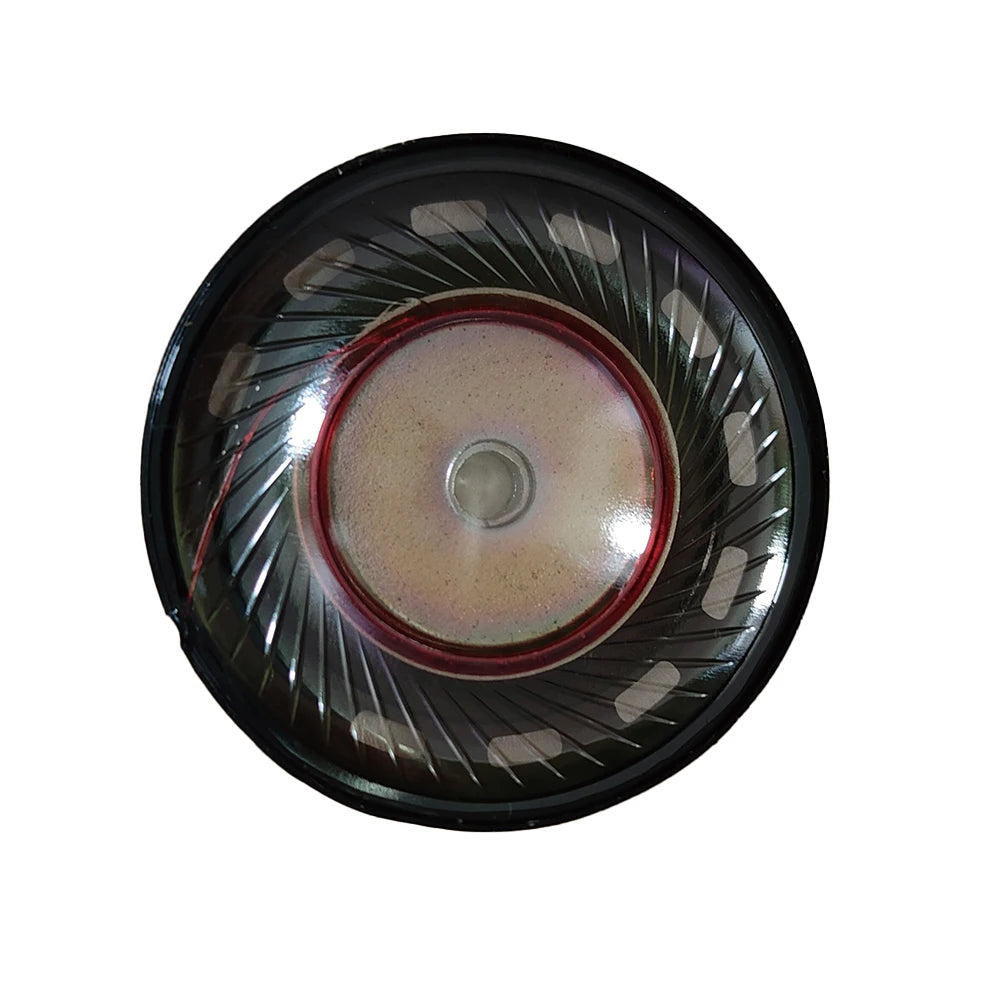

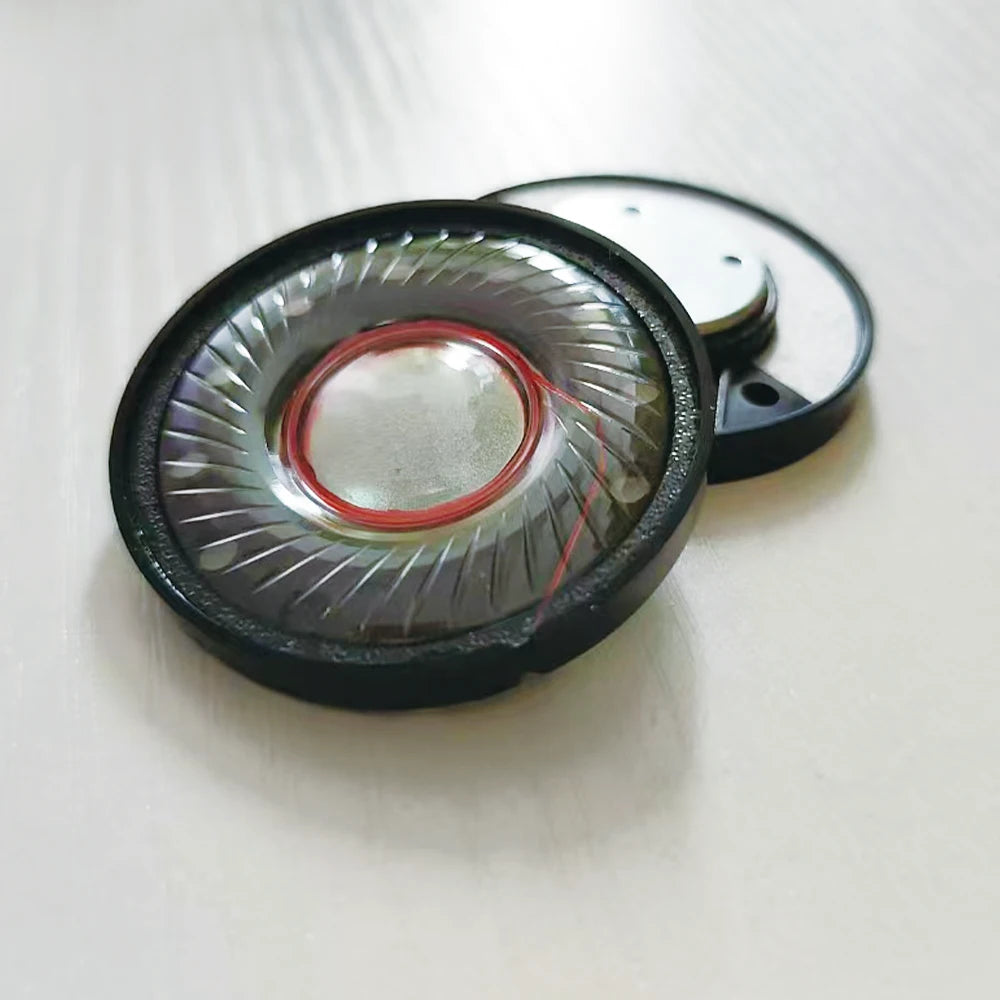

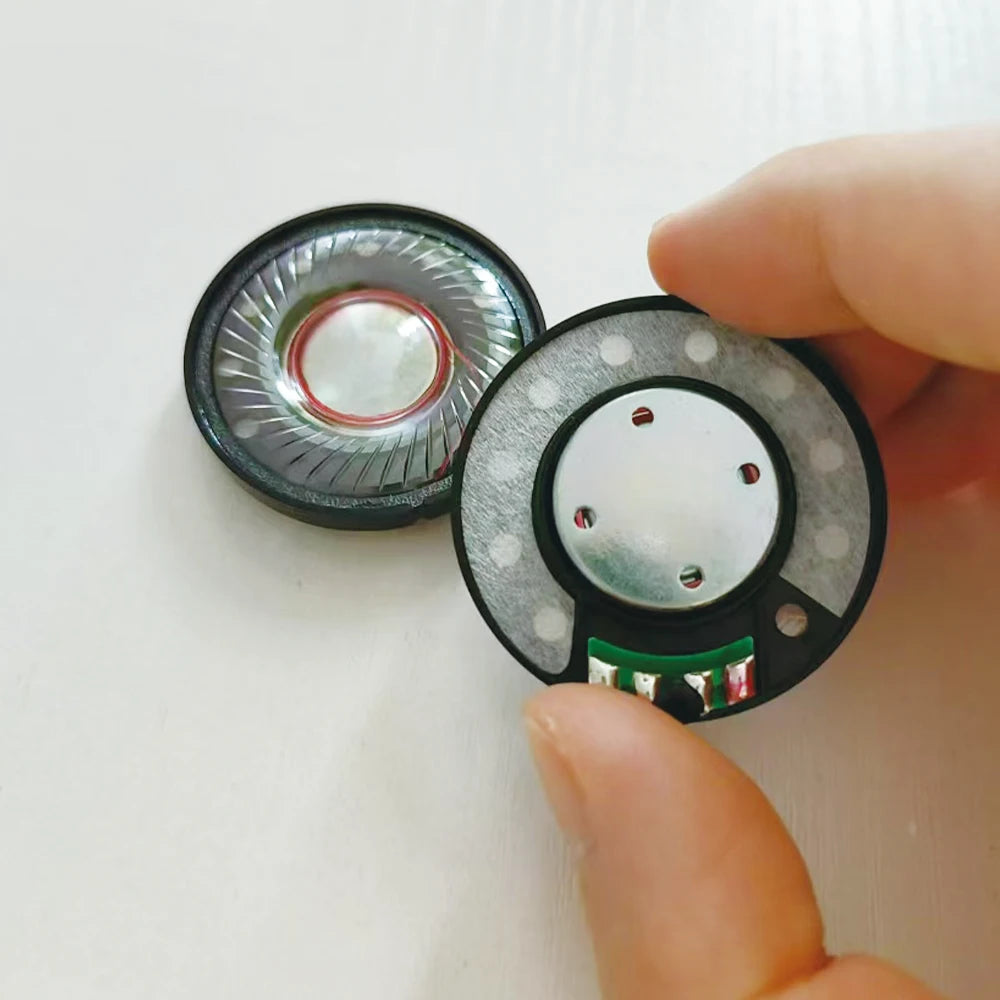

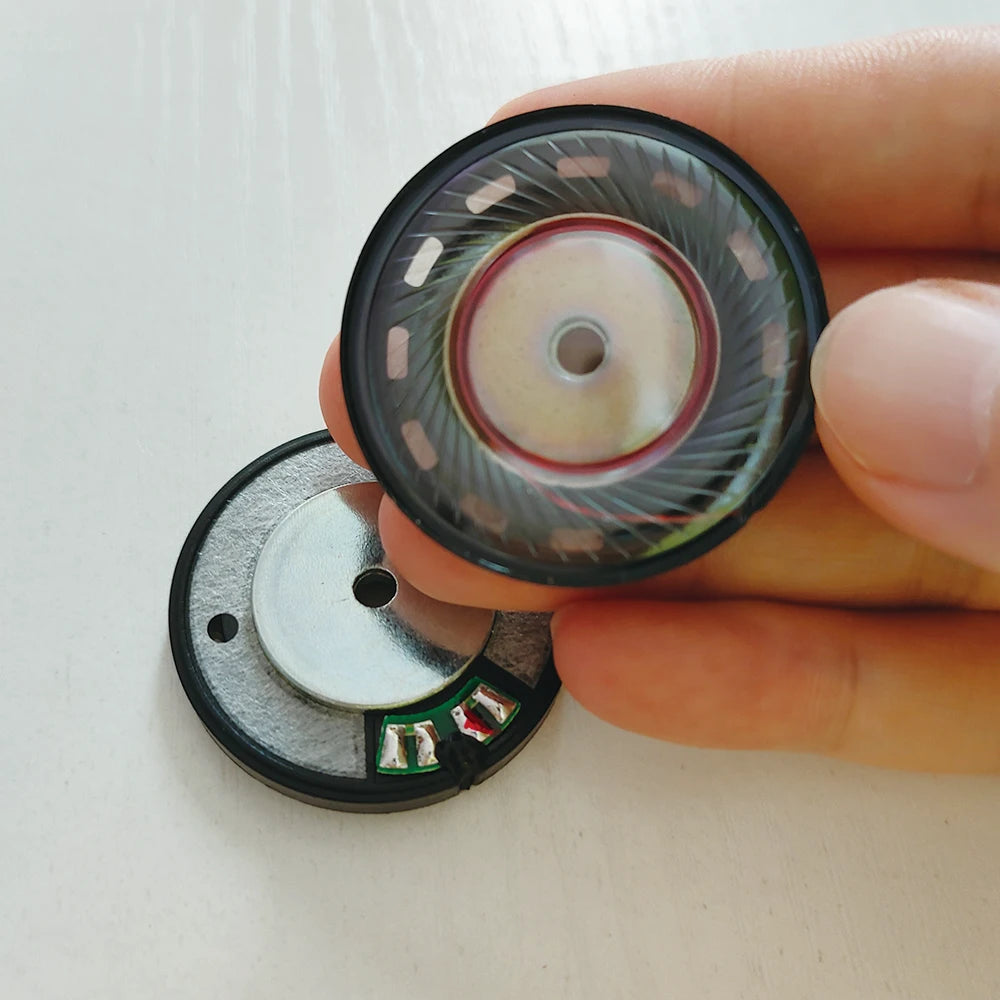

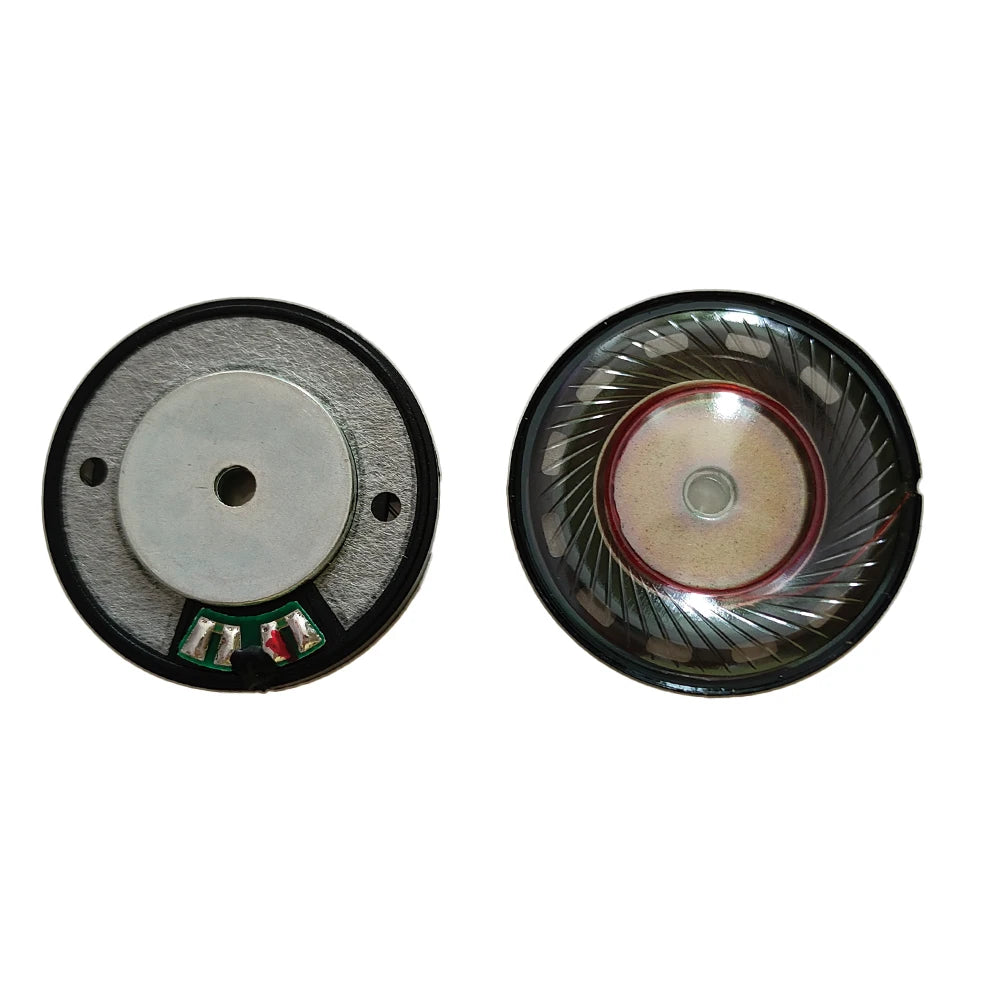

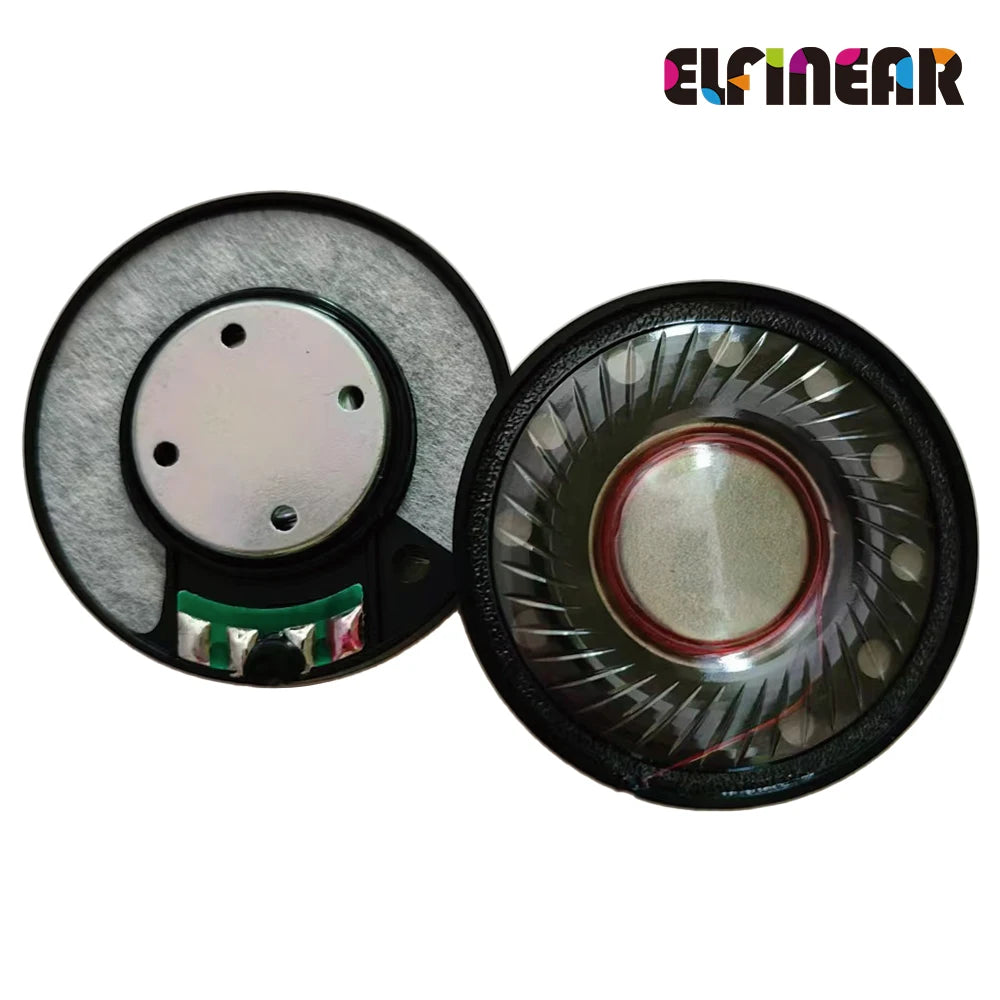

This 40mm headphone driver unit is designed specifically for DIY audiophiles. It features a graphene diaphragm, paired with a 16-core voice coil and N35 magnet, offering outstanding mid-low frequency performance, particularly for warm male vocals. The use of graphene not only provides superior rigidity and stability but also maintains excellent high-frequency resolution, ensuring the high frequencies are not sacrificed despite the strong low-frequency focus. As a full-range driver, it excels in delivering a rich mid-low frequency while keeping the highs clear and detailed, making it suitable for all-around music listening.

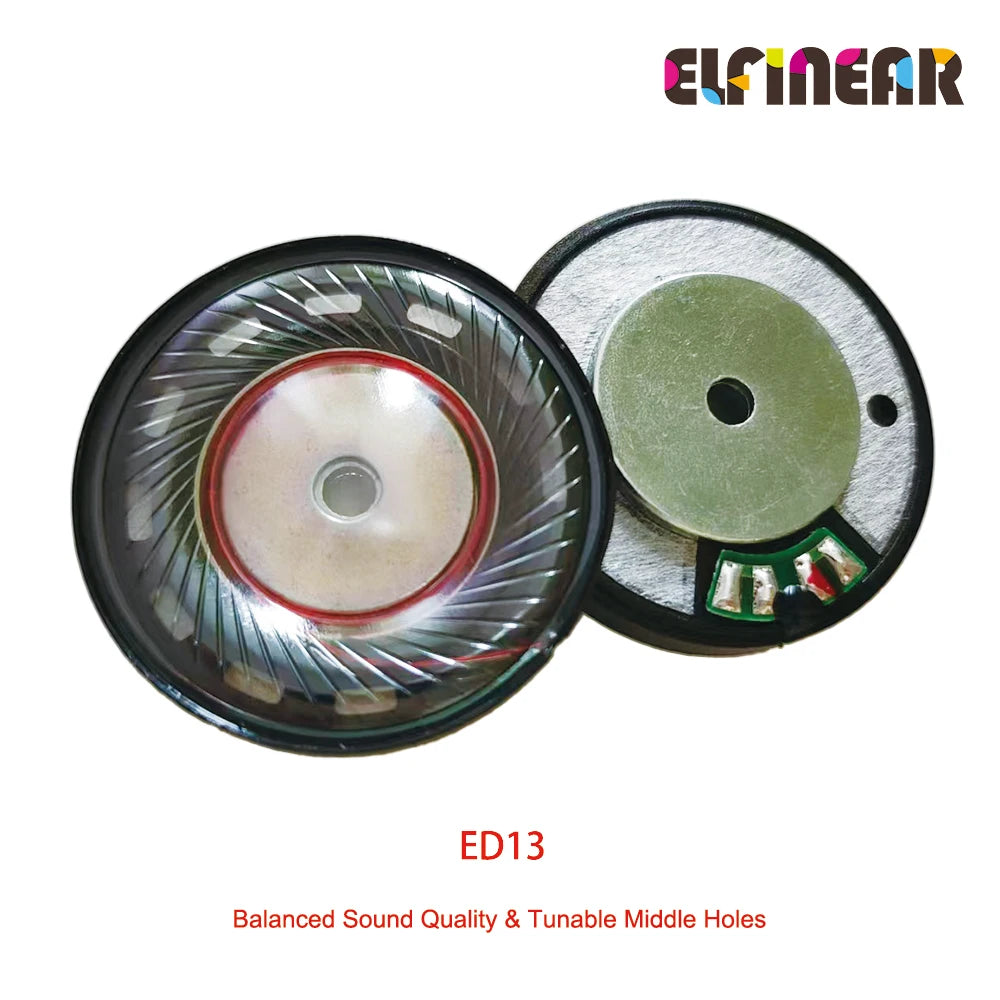

Model No.:ED13

### Product Specifications:

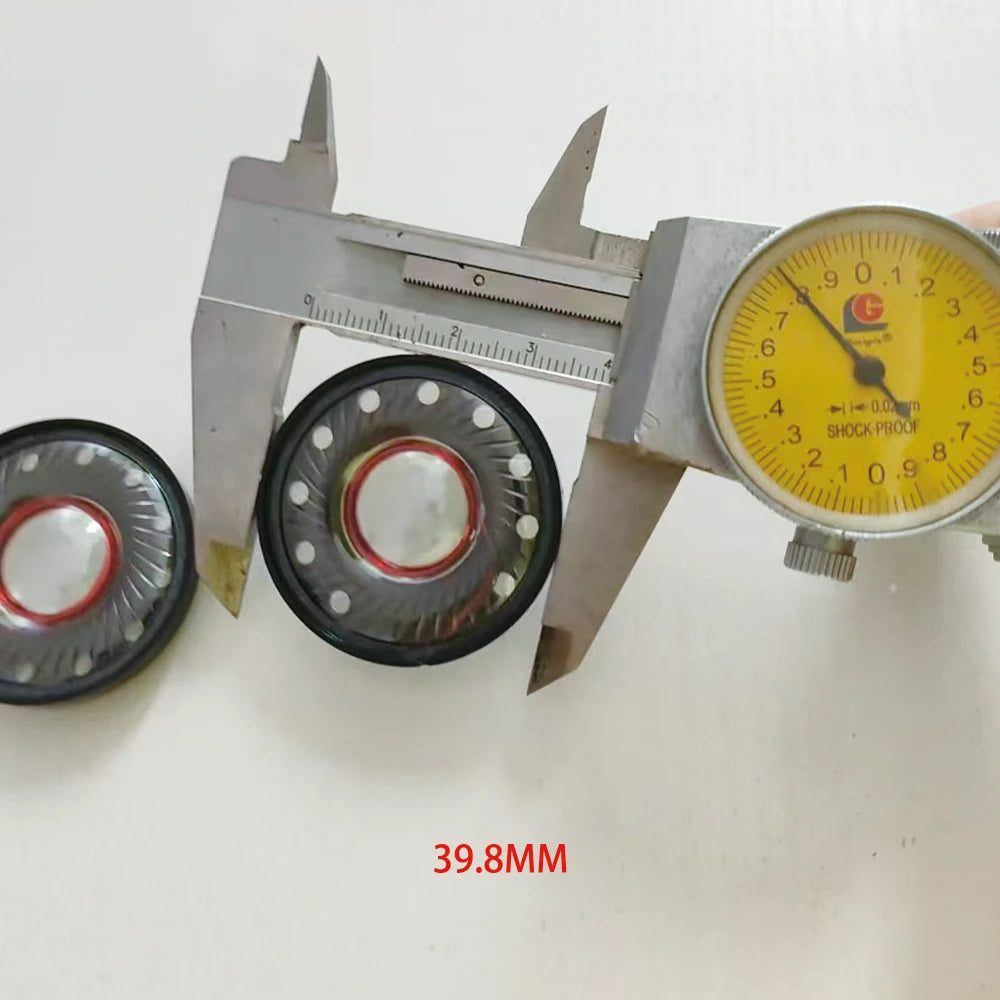

- **Driver Size**: 40mm

- **Impedance**: 32Ω

- **Power**: 10mW

- **Frequency Response**: Mid-High frequency focus

- **Diaphragm Material**: Graphene

- **Voice Coil**: 20-core

- **Magnet Type**: N52 (Enhanced)

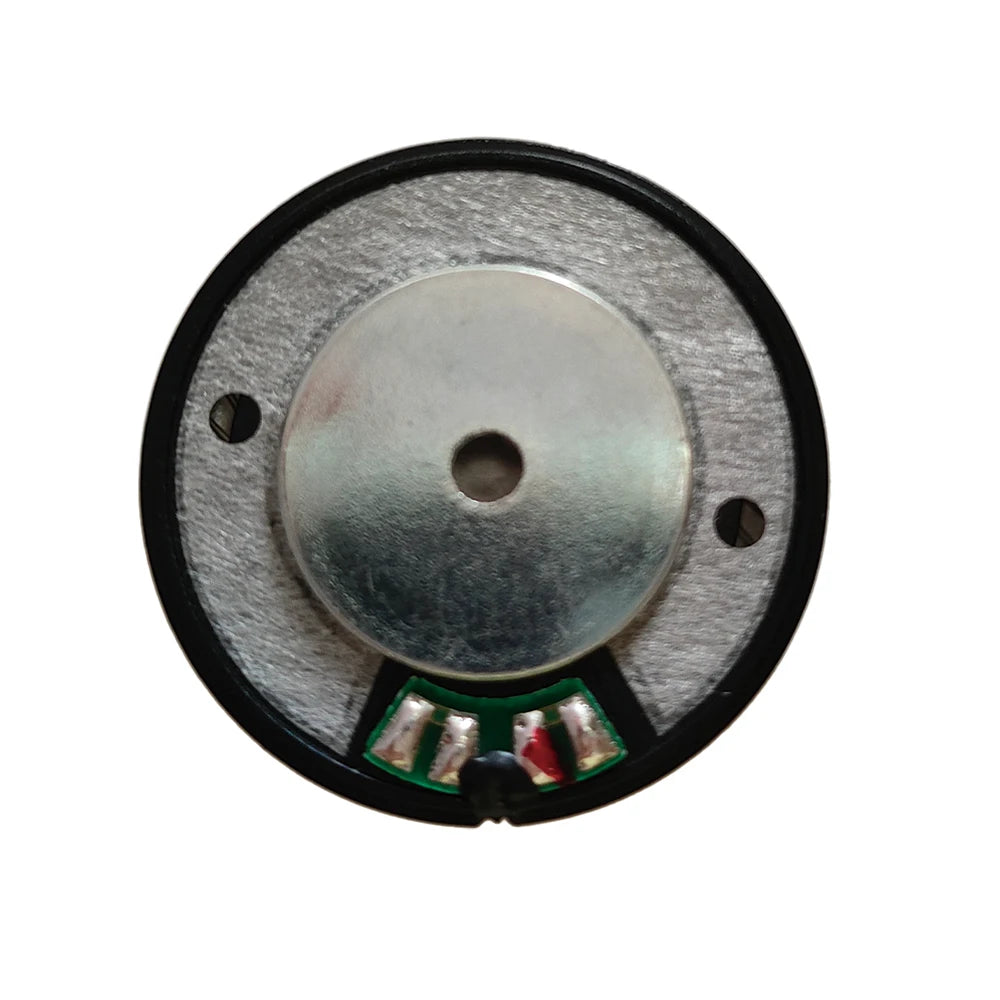

- **Customizable Tuning**: Center hole for sound adjustments

### Product Highlights Bullet Points:

- **20-Core Voice Coil**: Provides enhanced driving power and stability for greater control across frequencies.

- **N52 Enhanced Magnet**: Offers a stronger magnetic force than the previous model, resulting in more precise and stable sound reproduction.

- **Tunable Center Hole**: Allows DIY enthusiasts to fine-tune the sound signature, providing flexibility for personalized acoustic adjustments.

- **Enhanced Mid-High Frequency**: Focused on delivering clear and refined mid-high frequency performance, perfect for those seeking detailed treble and vocals.

- **DIY-Friendly Design**: The open center hole gives audiophiles more control over tuning, making this unit highly customizable.

### Product Description:

This 40mm driver unit features a 20-core voice coil and an N52 enhanced magnet, which offers greater magnetic strength compared to standard N35 magnets. The stronger magnetic force results in more stable and controlled sound quality across the frequency spectrum, particularly in the mid-high frequencies, making it a more premium option for discerning audiophiles. Additionally, this unit is designed with a tunable center hole, allowing DIY enthusiasts to adjust the tuning to their personal preferences, adding an extra layer of customization.

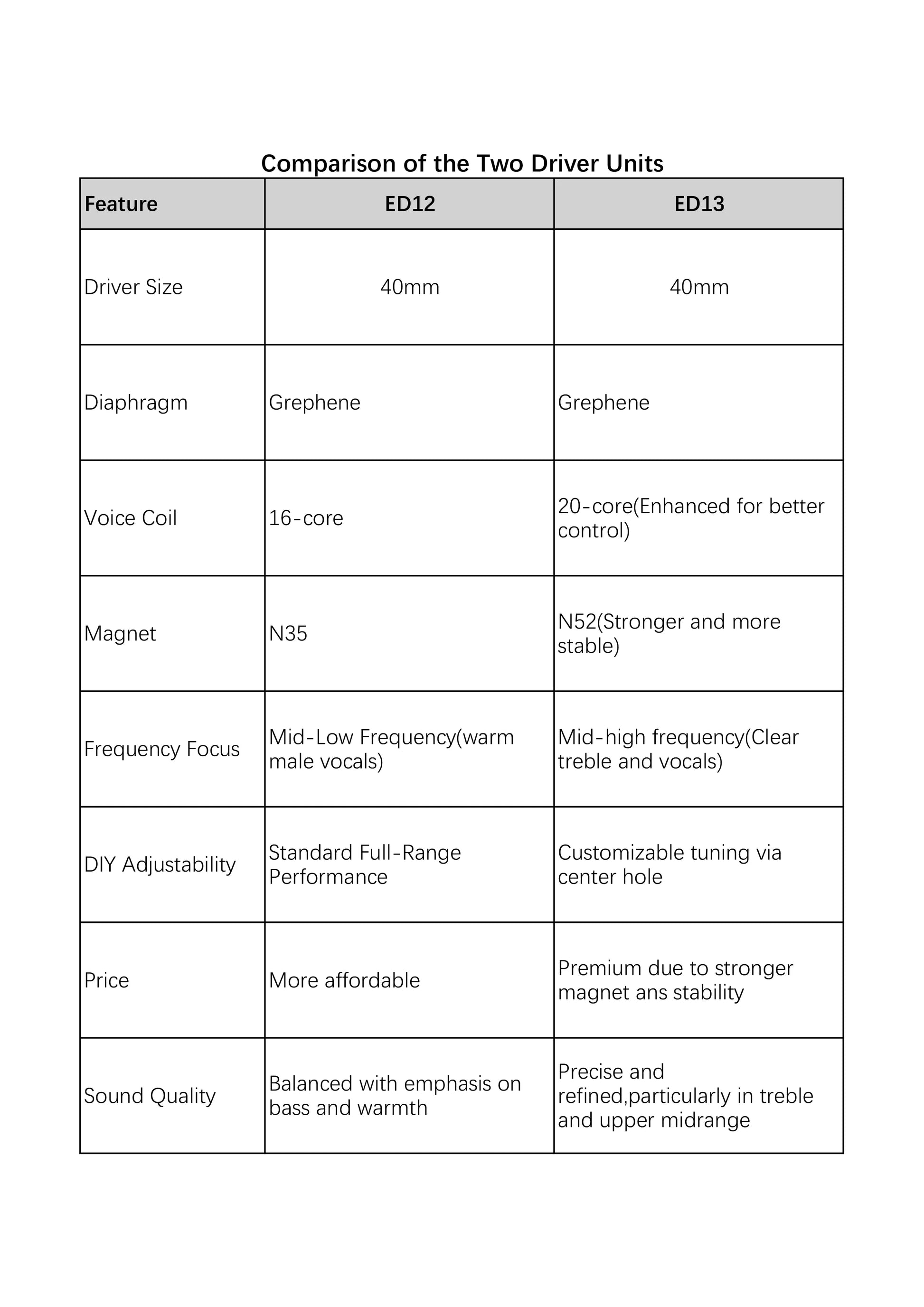

Unlike the first model, which emphasizes rich mid-lows and warm male vocals, this driver focuses on mid-high frequency clarity. The improved magnet and voice coil enhance both stability and the refinement of treble and upper midrange details, making it the ideal choice for those who prioritize treble precision and overall sound customization.
