ELFINEAR OFFICIAL STORE

ELFINEAR Myth Premium 40MM Monitoring Speaker Units Drivers Headsets Headphones Accessories

$43.00 USD

~~$43.00 USD~~ $43.00 USD

Sale Sold out

Shipping calculated at checkout.

Color black

Size 40MM-ELF D10 50MM-ELF13

Quantity

SPECIFICATIONS

Brand Name: ELFINEAR

Choice: yes

Impedance: 32ohm

Item Type: speaker unit

Material: Plastic

Model Number: Elf13

Origin: Mainland China

Pack: 2

Package: Yes

Sensitivity: 115dB at 1kHz

Size: 40MM

Watts: 200mW

semi_Choice: yes

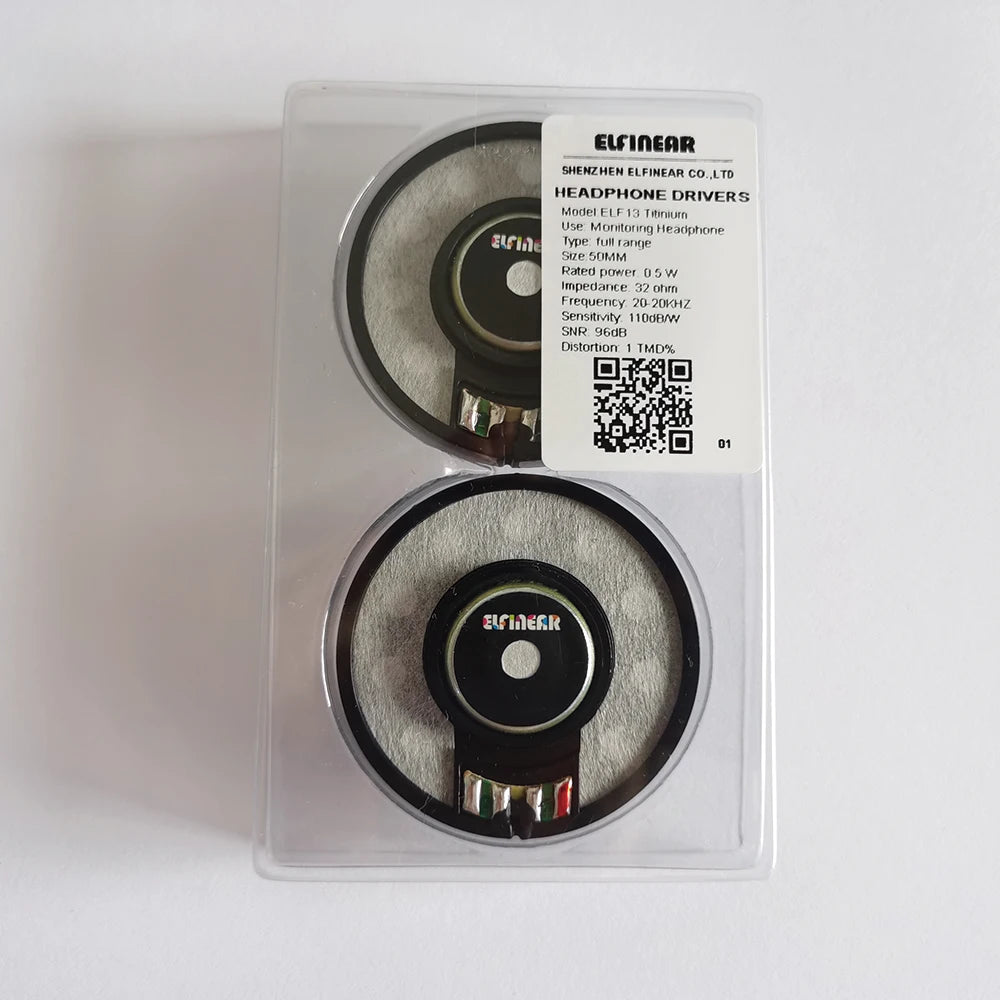

Model:ELF13 Titinium

Use: Monitoring Headphone Accessories

Construction: Coaxial composite
Magnetic circuit form: Internal magnetic formula
Type: full range

Size:50MM
Rated power: 0.05 W
Impedance: 32 ohm
Frequency: 20-20KHZ
Sensitivity: 110dB/W
SNR: 96dB
Distortion: 1 TMD%
Directivity: the marked color point is the unit positive pole

Speaker timbre: Offers a smooth curve, ensuring high-quality sound reproduction. Ideal for monitoring purposes with excellent noise reduction capabilities. These HIFI earphones are designed with low resistance for effortless sound amplification, and they provide exceptional three-frequency separation.

Packaging:

2* Headphone Speaker unit

Instructions:

Please test the speakers with a multimeter before soldering.

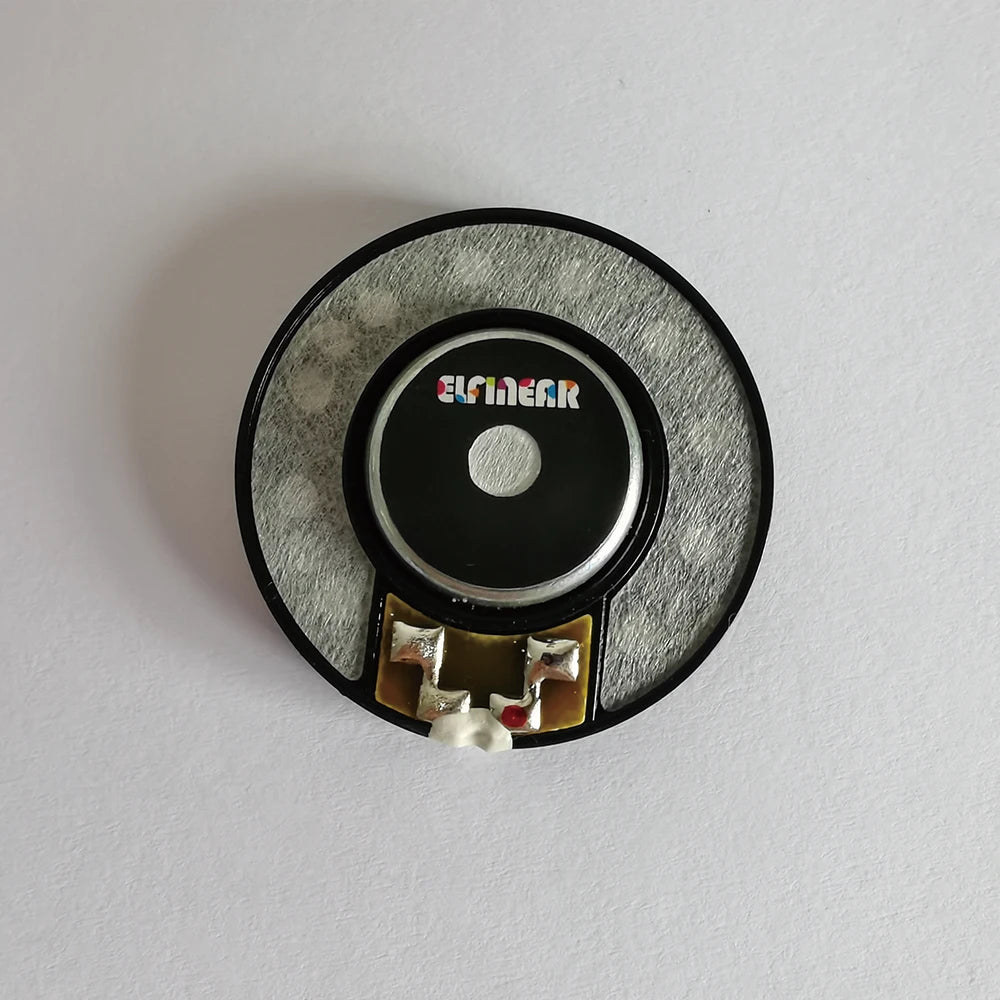

The colored spot is for positive pole +, the other side is for negative -.
Soldering with less than 3 seconds. Otherwise, the voice coil or circuit board can be burned out easily.

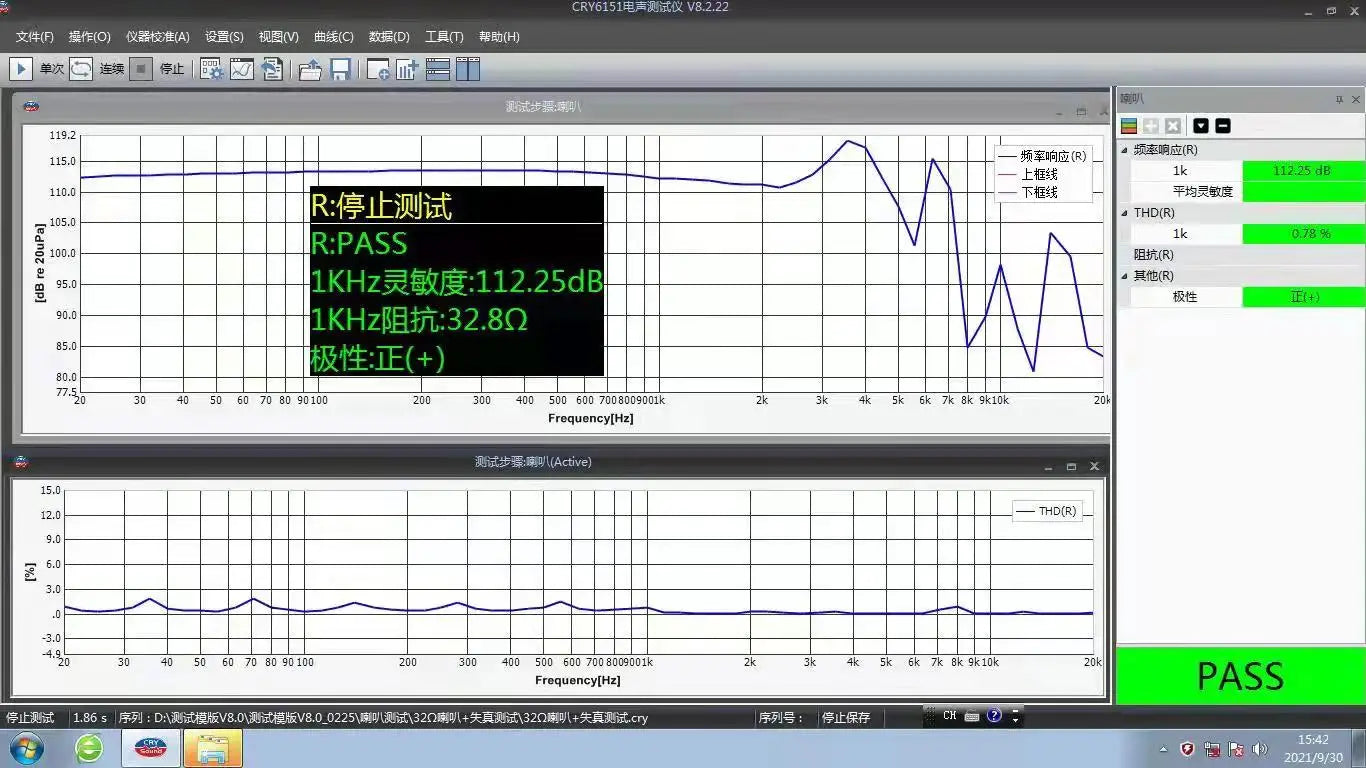

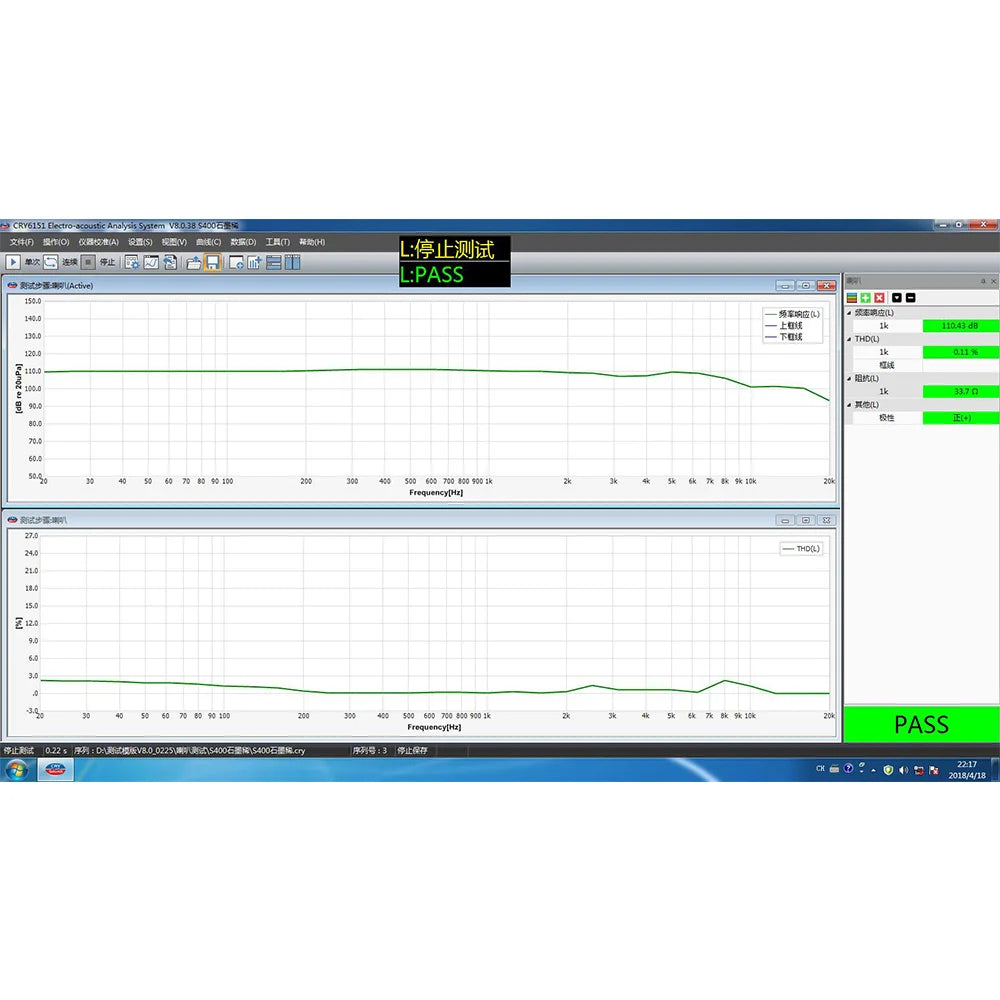

Note:All ELFINEAR driver units undergo thorough testing and confirmation for various aspects such as curve distortion, phase, dB value, and voice frequency sweep pairing before they are shipped. Upon receiving the drivers, we kindly request you to carefully inspect the package and assess the quality using a multimeter or other suitable devices before proceeding with the welding process. It is important to note that as these units are considered perishable goods, we are unable to provide warranty coverage once they have been welded.

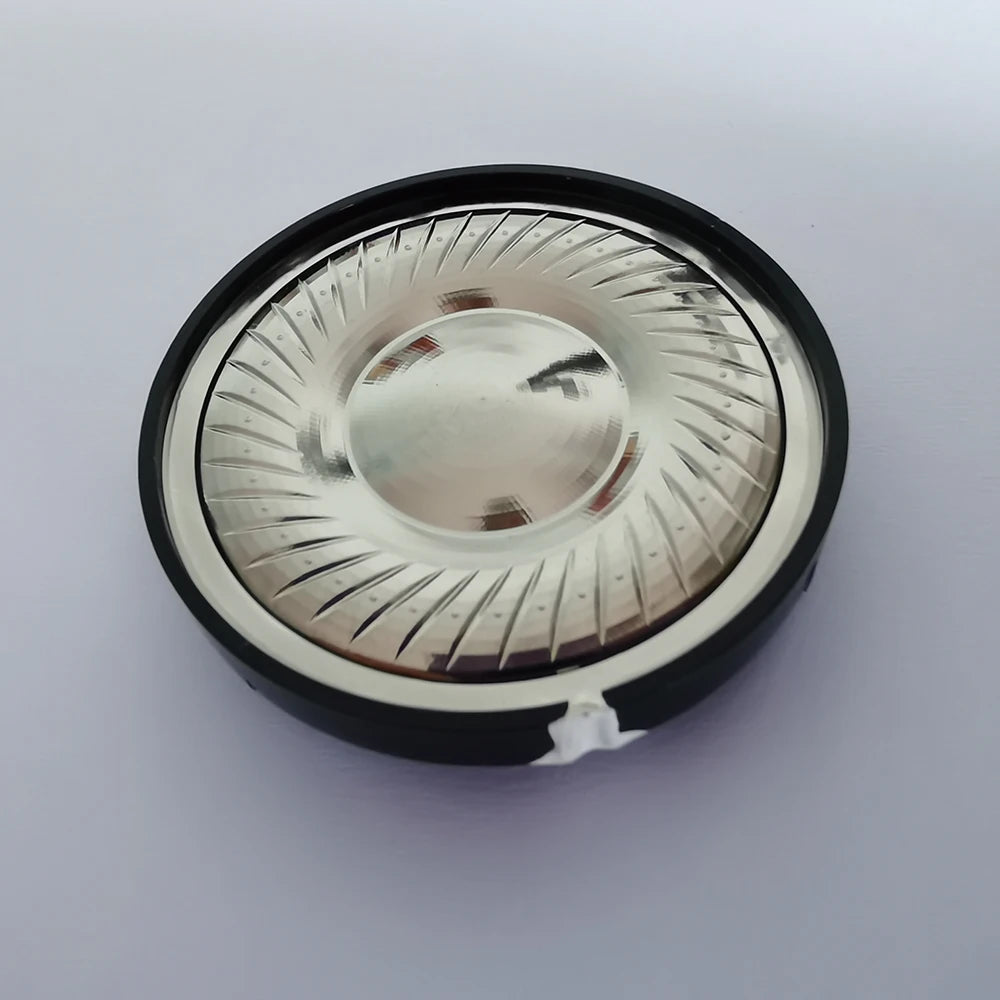

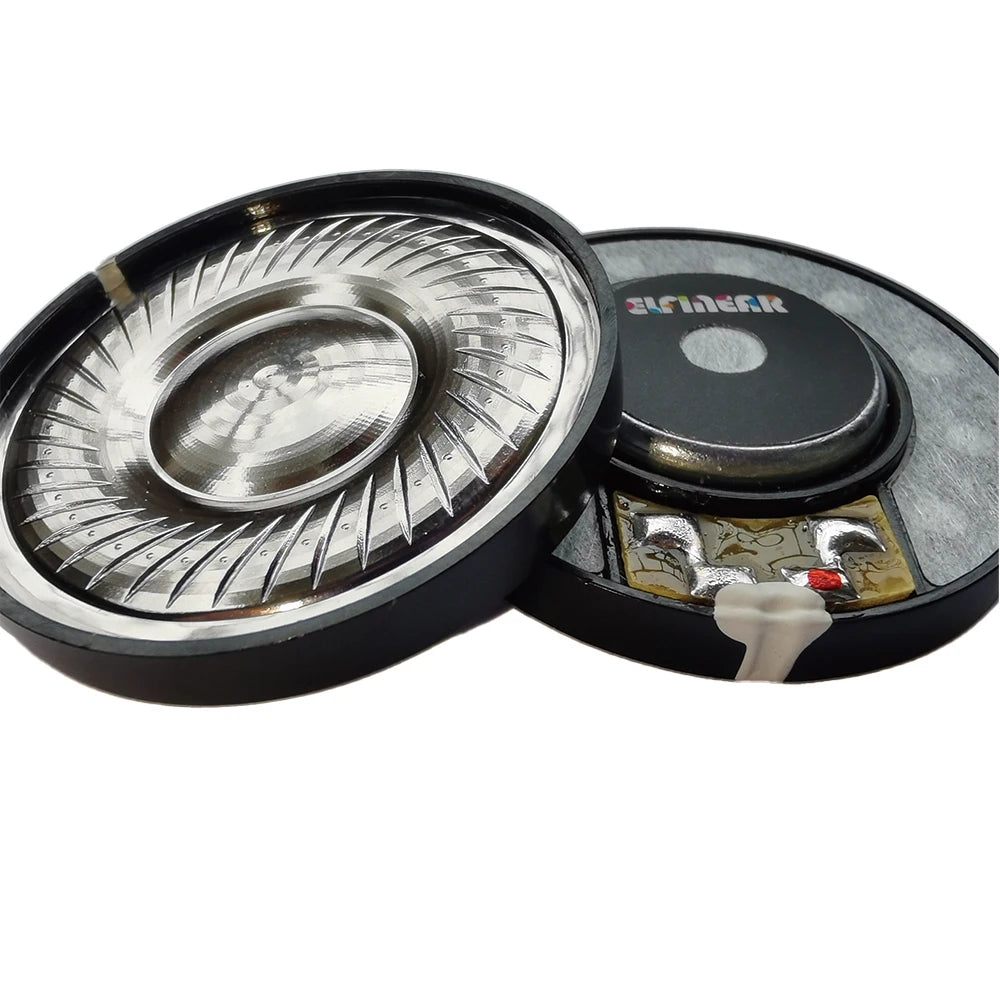

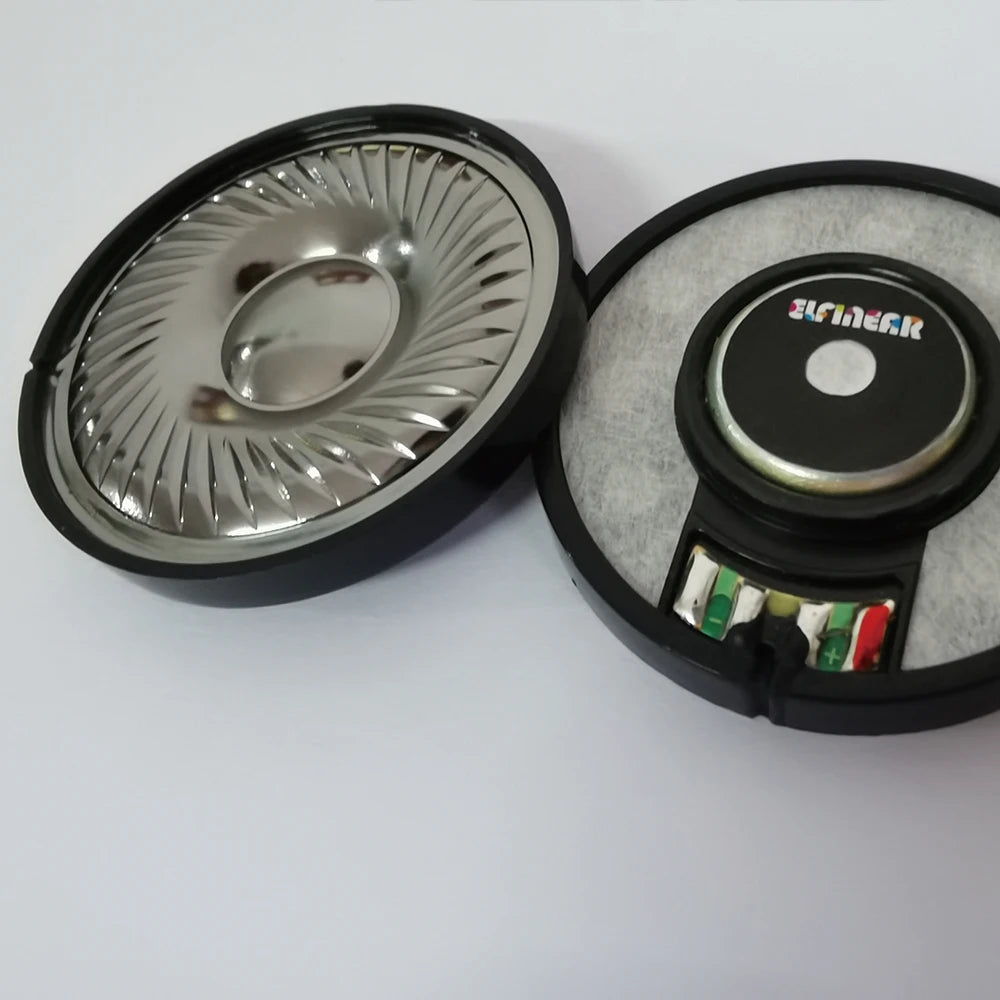

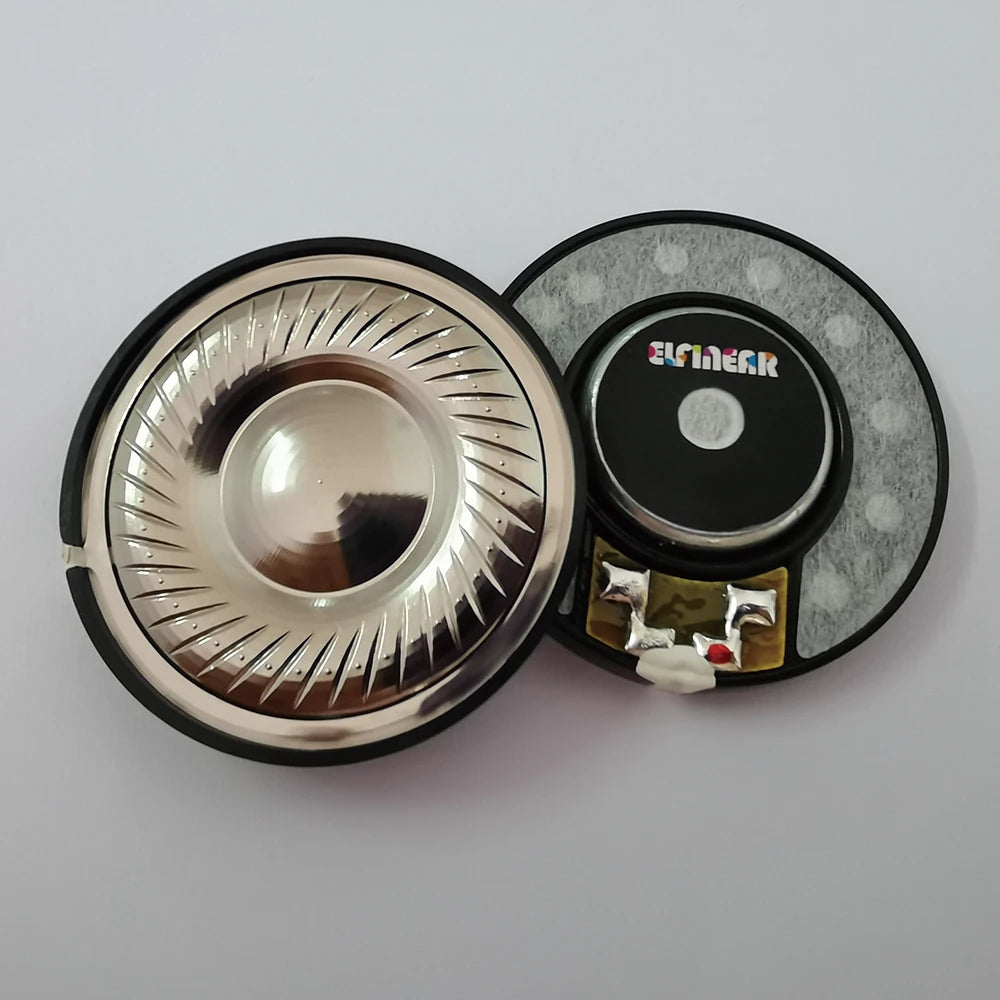

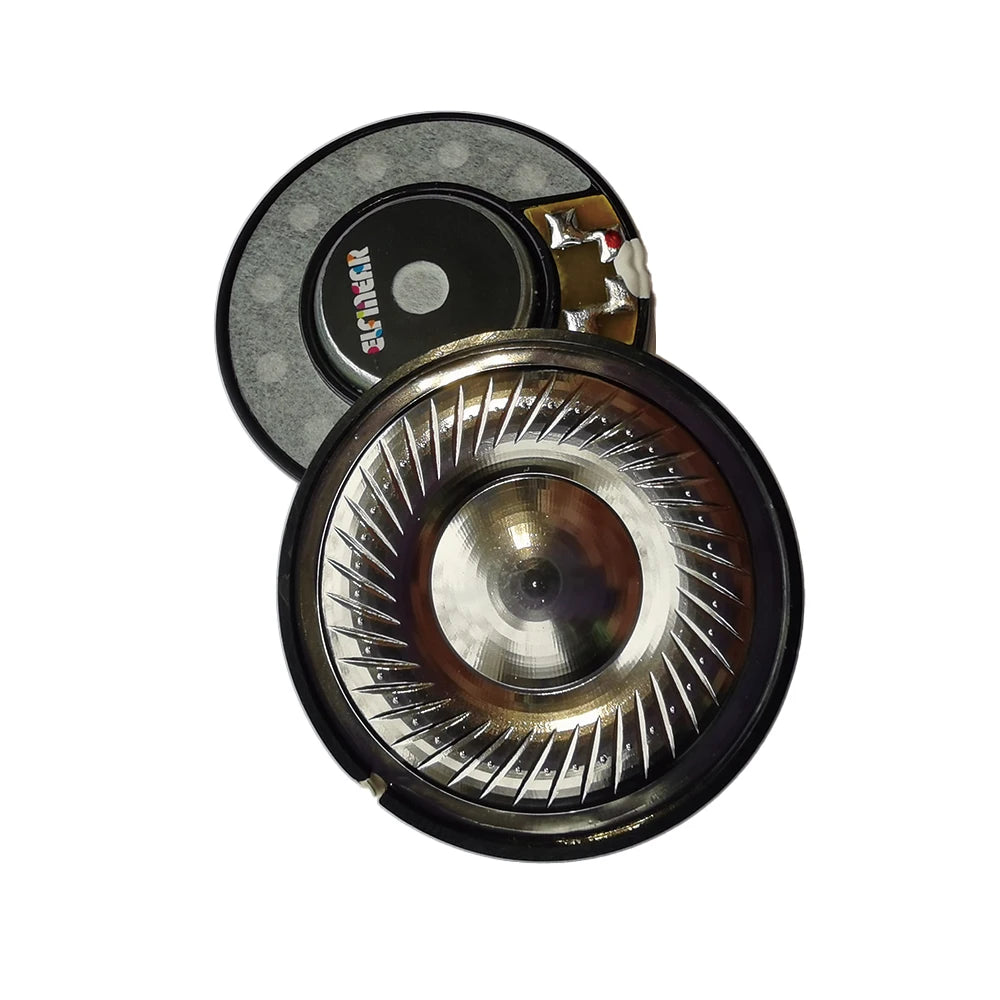

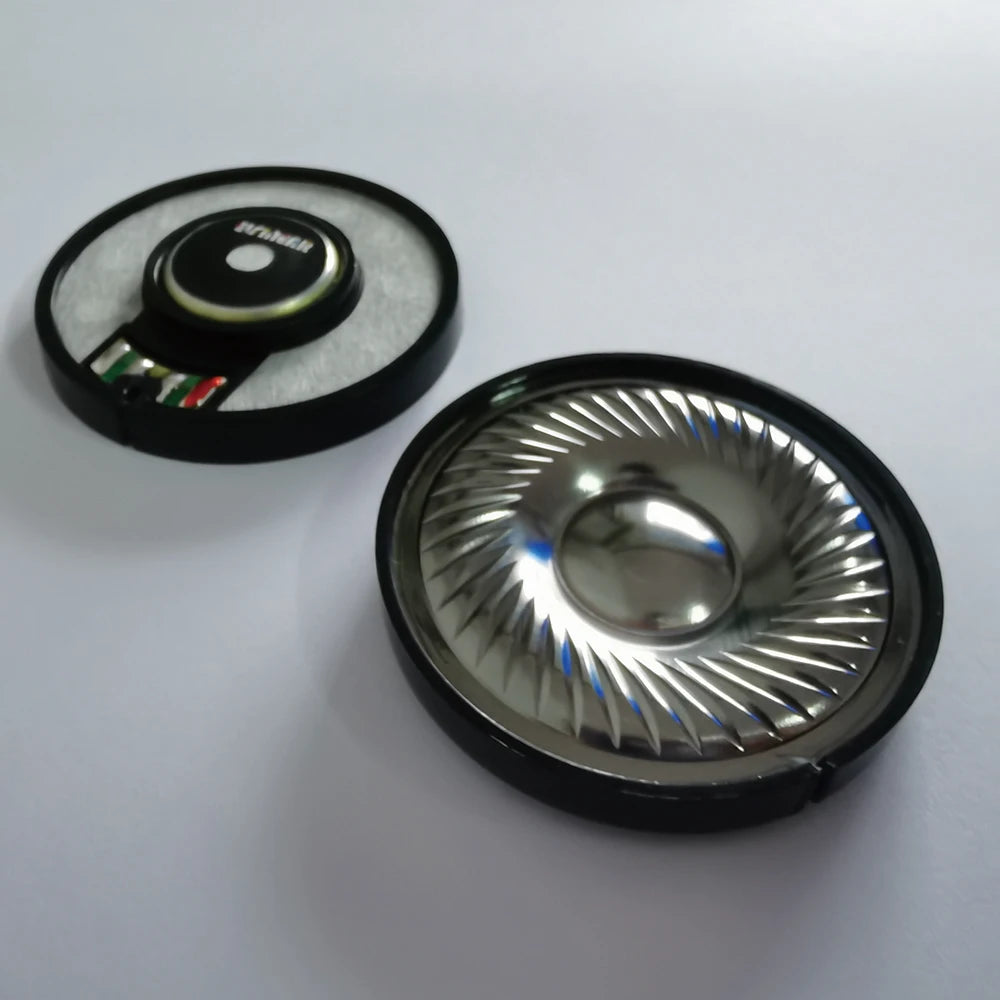

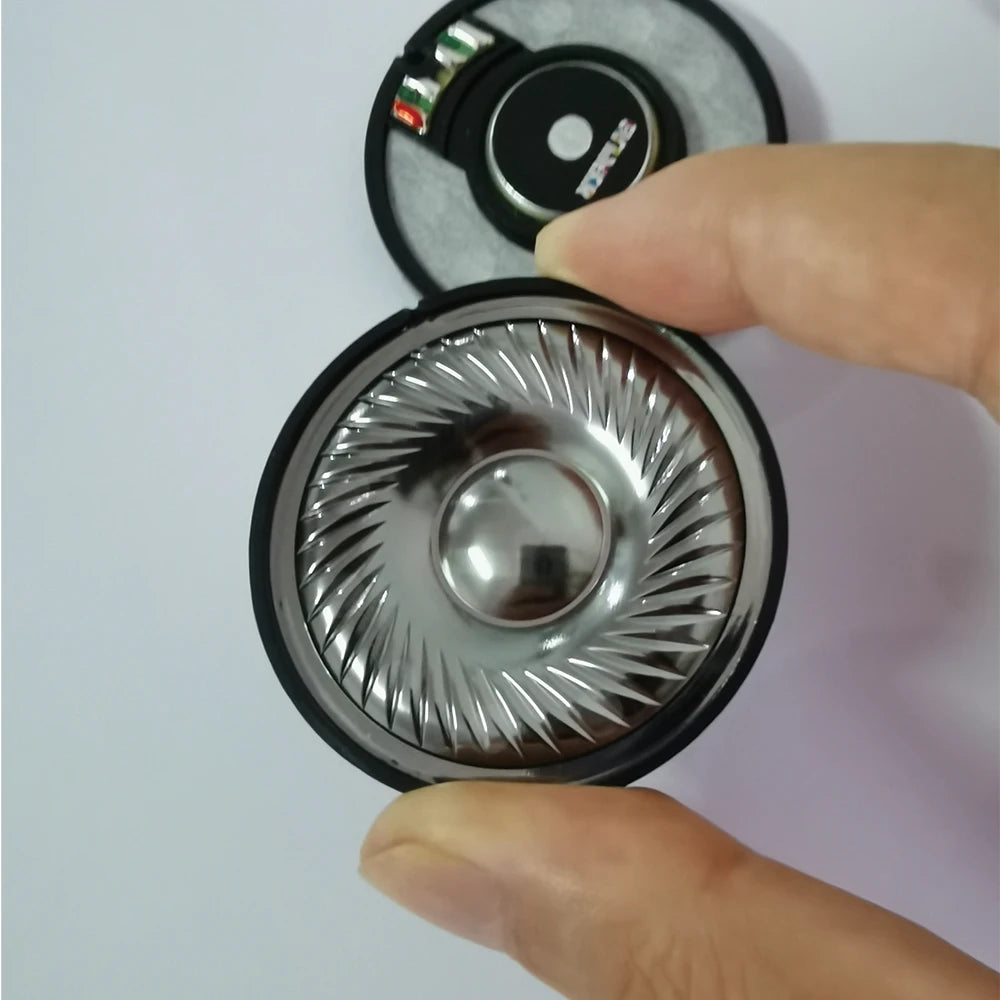

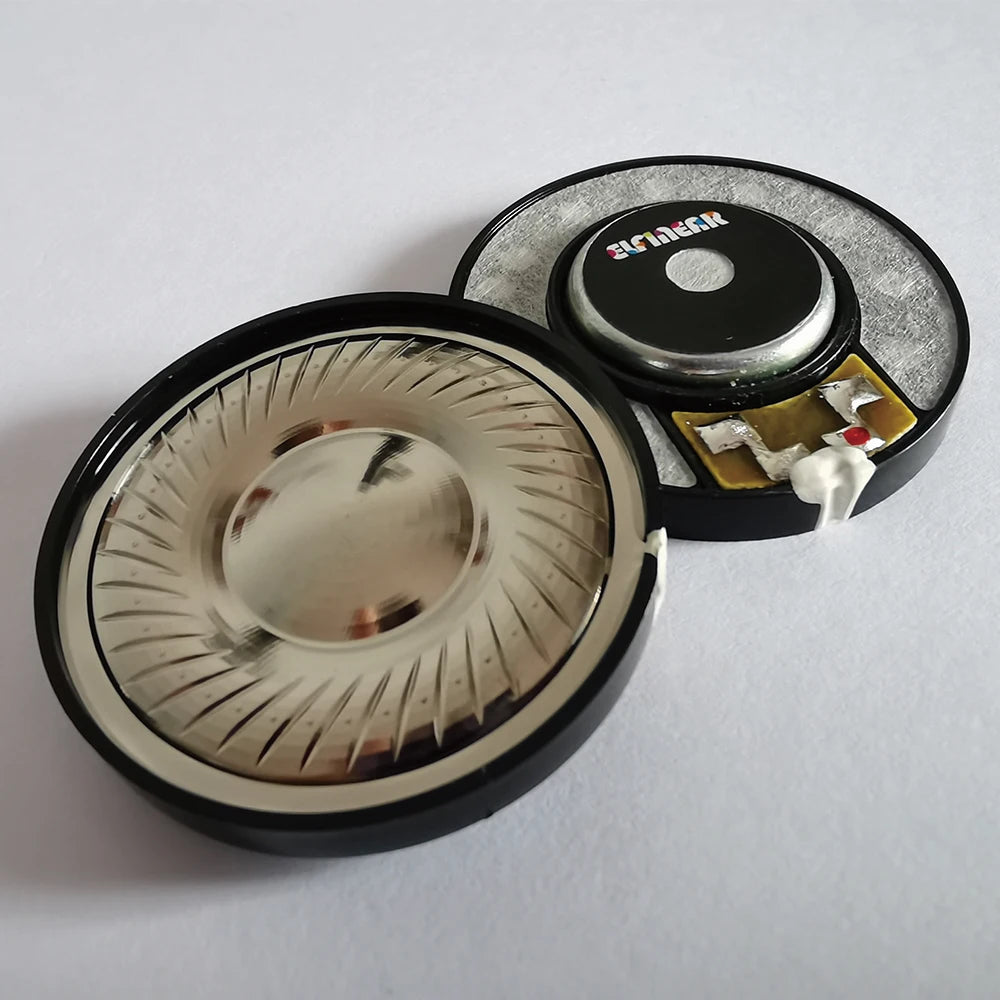

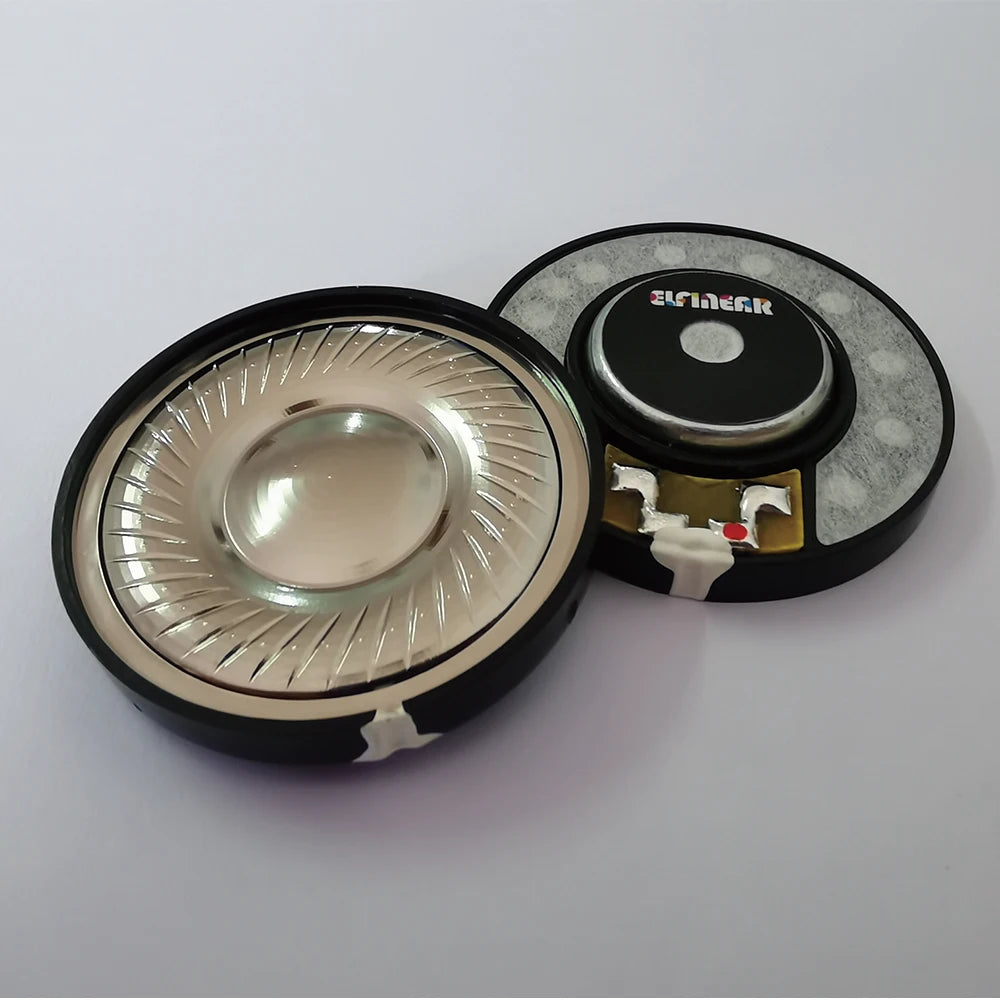

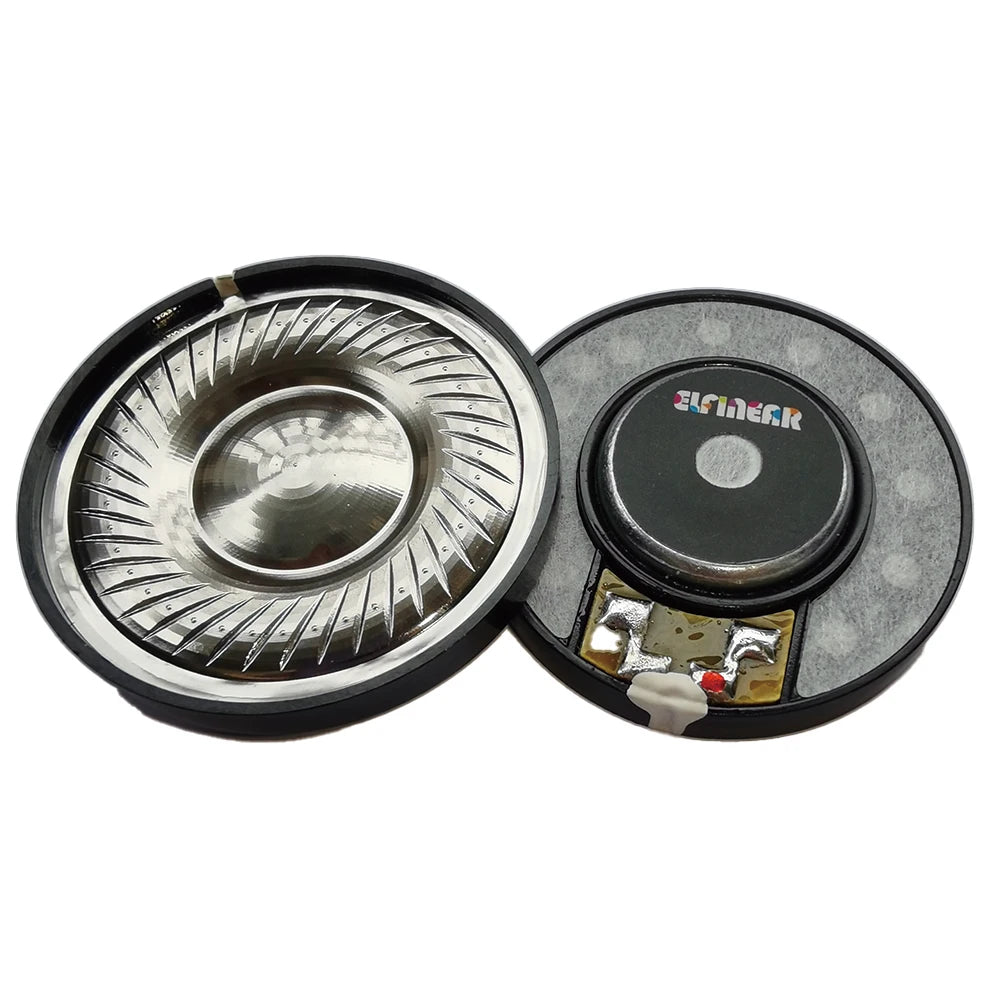

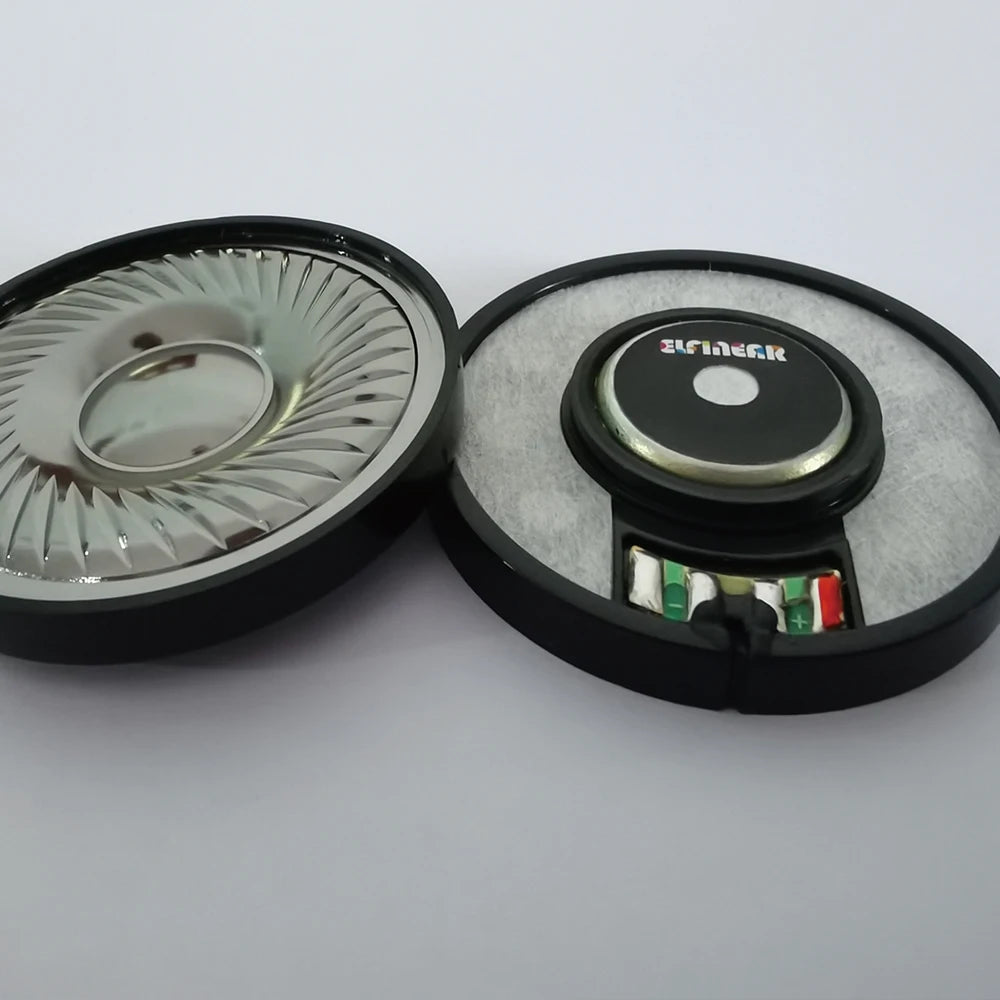

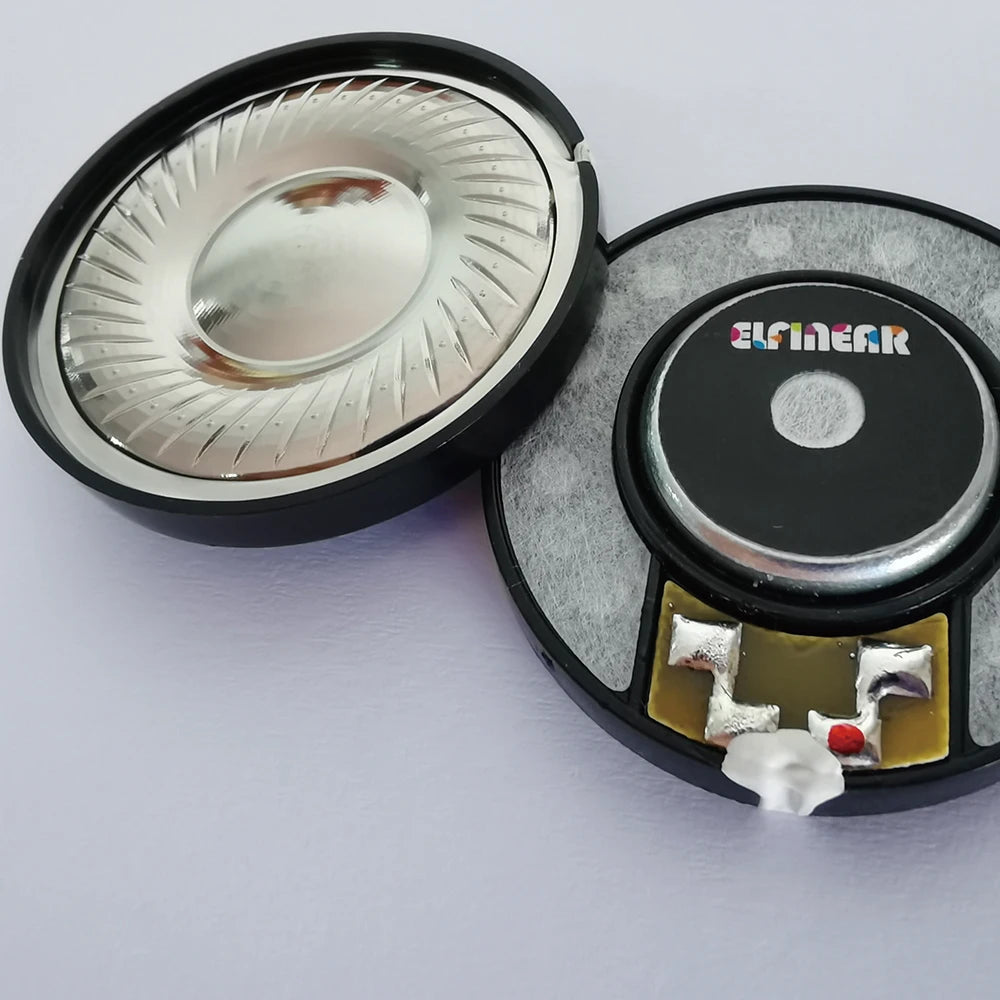

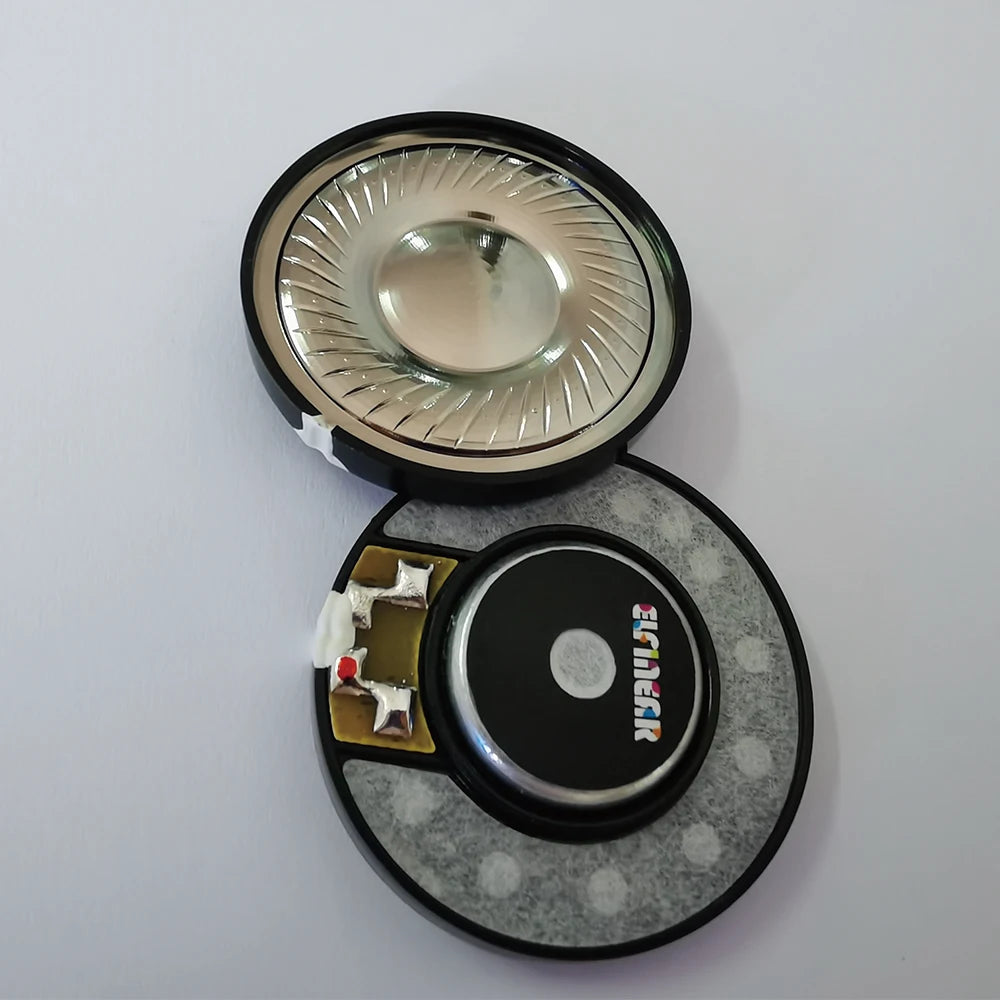

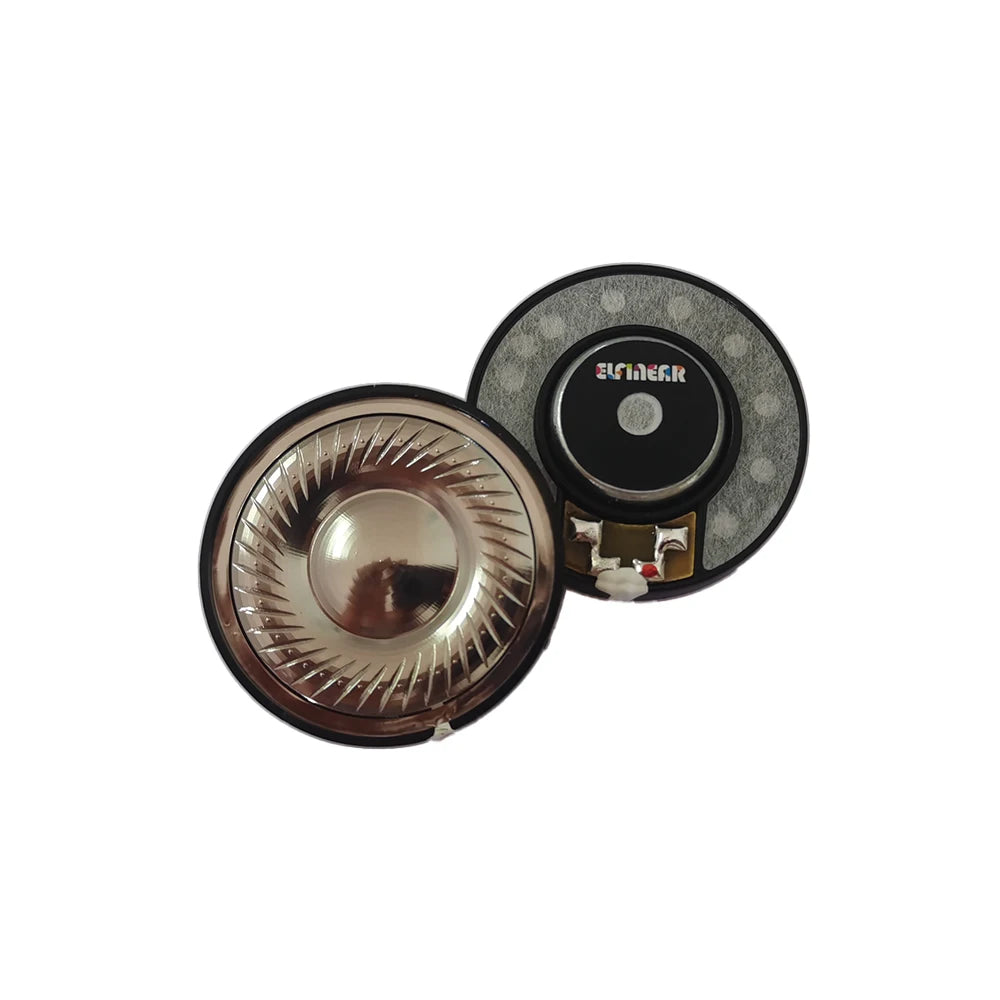

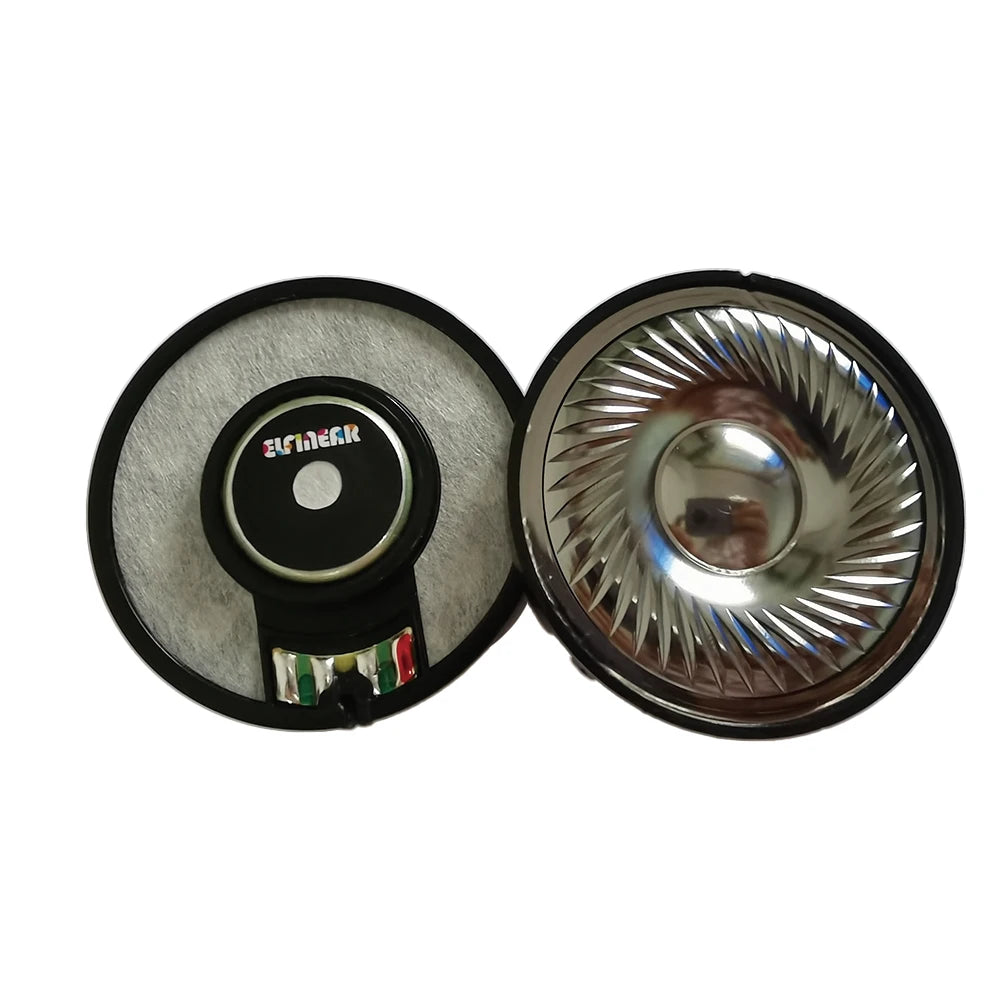

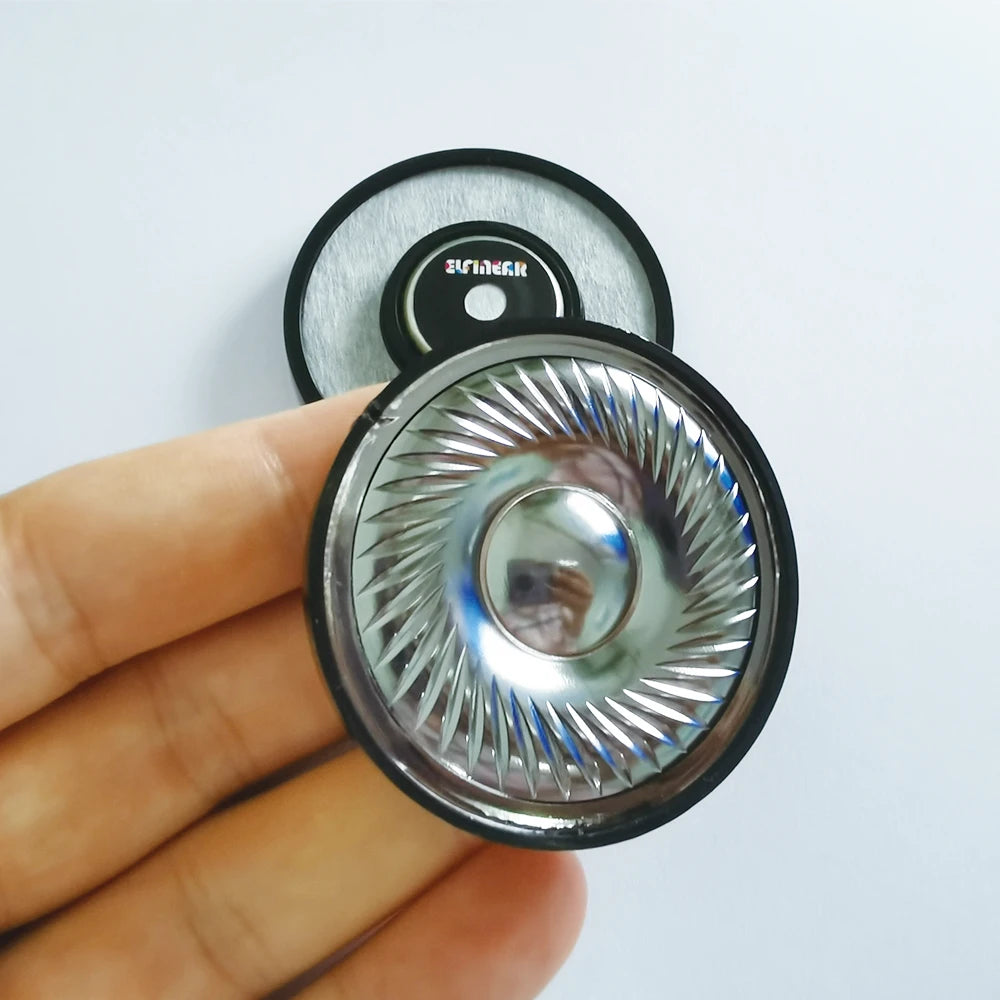

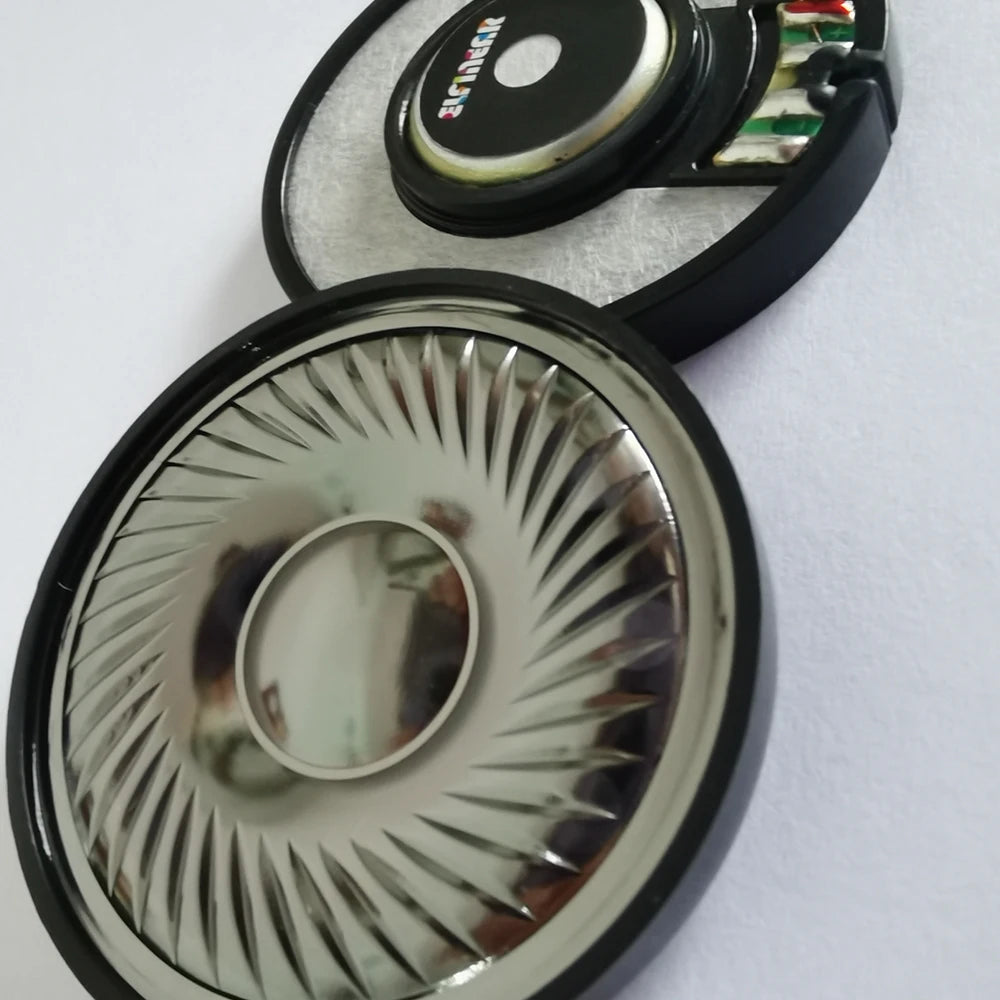

50MM SPEAKER DRIVER PICTURES

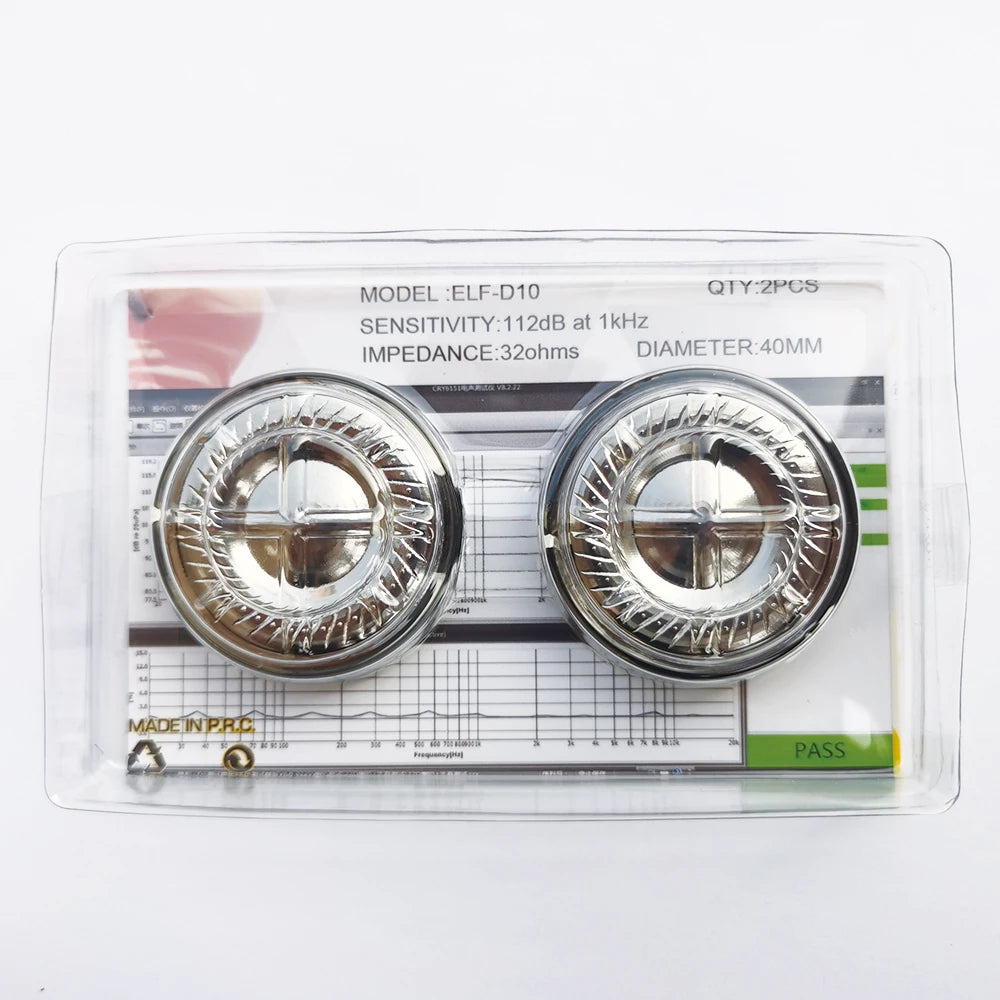

Model:ELF-D10 Titinium

Use: Monitoring Headphone Accessories

Construction: Coaxial composite
Magnetic circuit form: Internal magnetic formula
Type: full range

Size:40MM
Rated power: 0.05 W
Impedance: 32 ohm
Frequency: 20-20KHZ
Sensitivity: 110dB/W
SNR: 96dB
Distortion: 1 TMD%
Directivity: the marked color point is the unit positive pole

Features:

Real headphones listening myth Monitoring units, it is extremely good for its vocals and resolution as well as its bass. diaphragm coated with special metal coating not titanium or silver.32 ohm Japan imported black copper clad aluminum wire. 15.5 * 2 N45 powerful magnets with tuning adjusting paper in the middle. tuning paper from Y2-Y6, the thinner the bass is better, the thicker the resolution is stronger, you can choose according to your own Hedphone Housing for what kind of tuning paper.Please leave me your choice or we will ship with factory standard drivers.

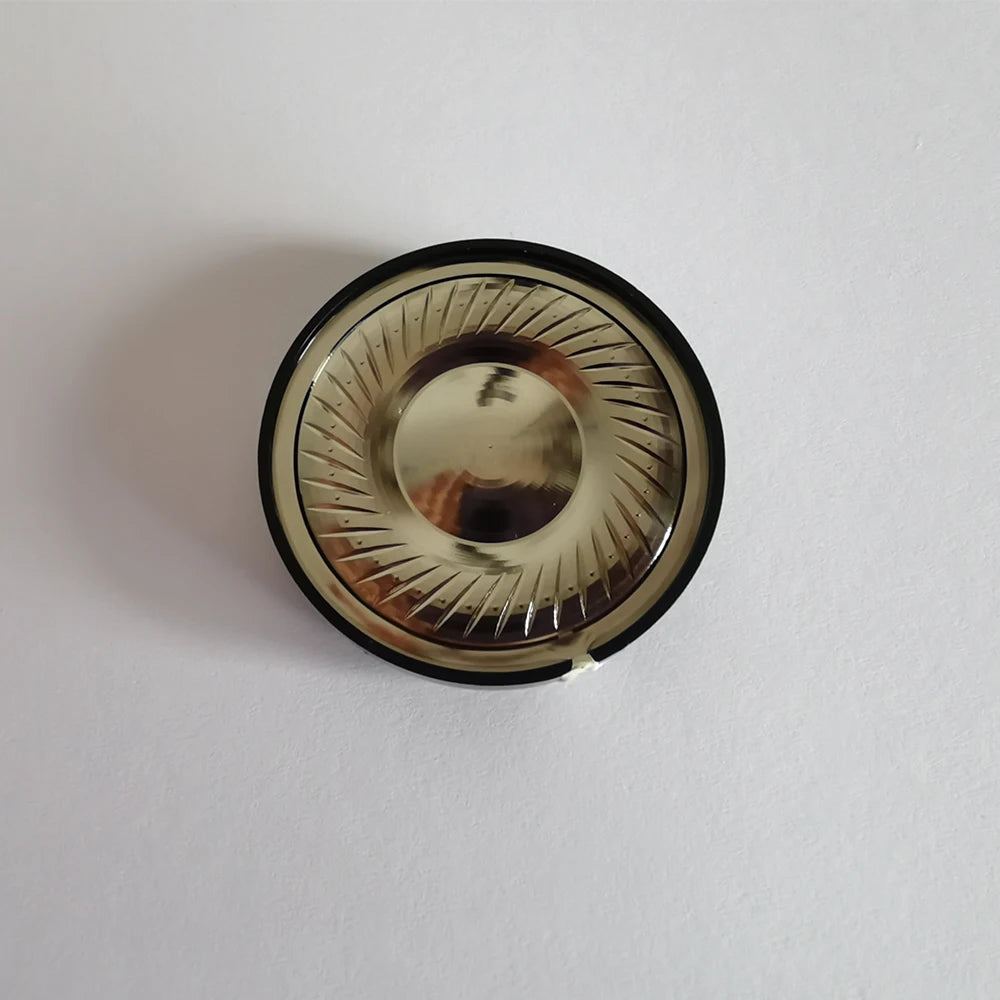

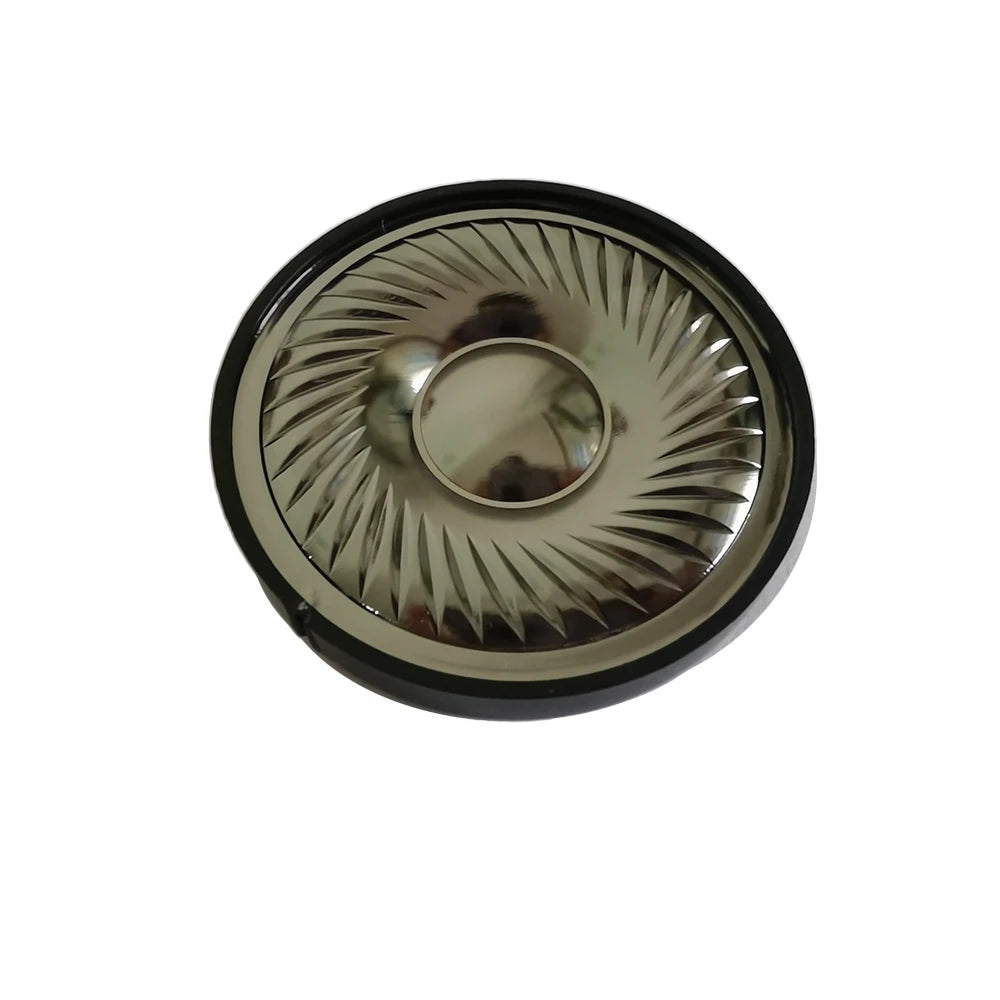

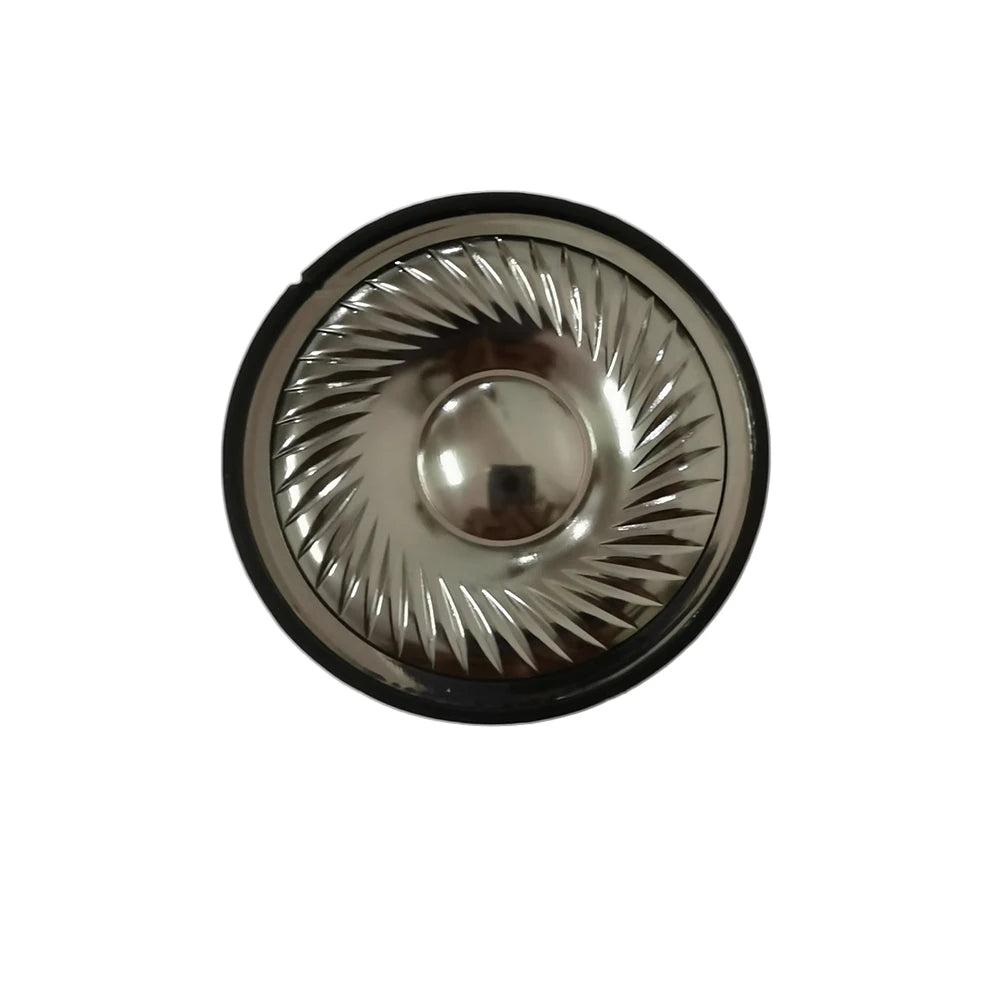

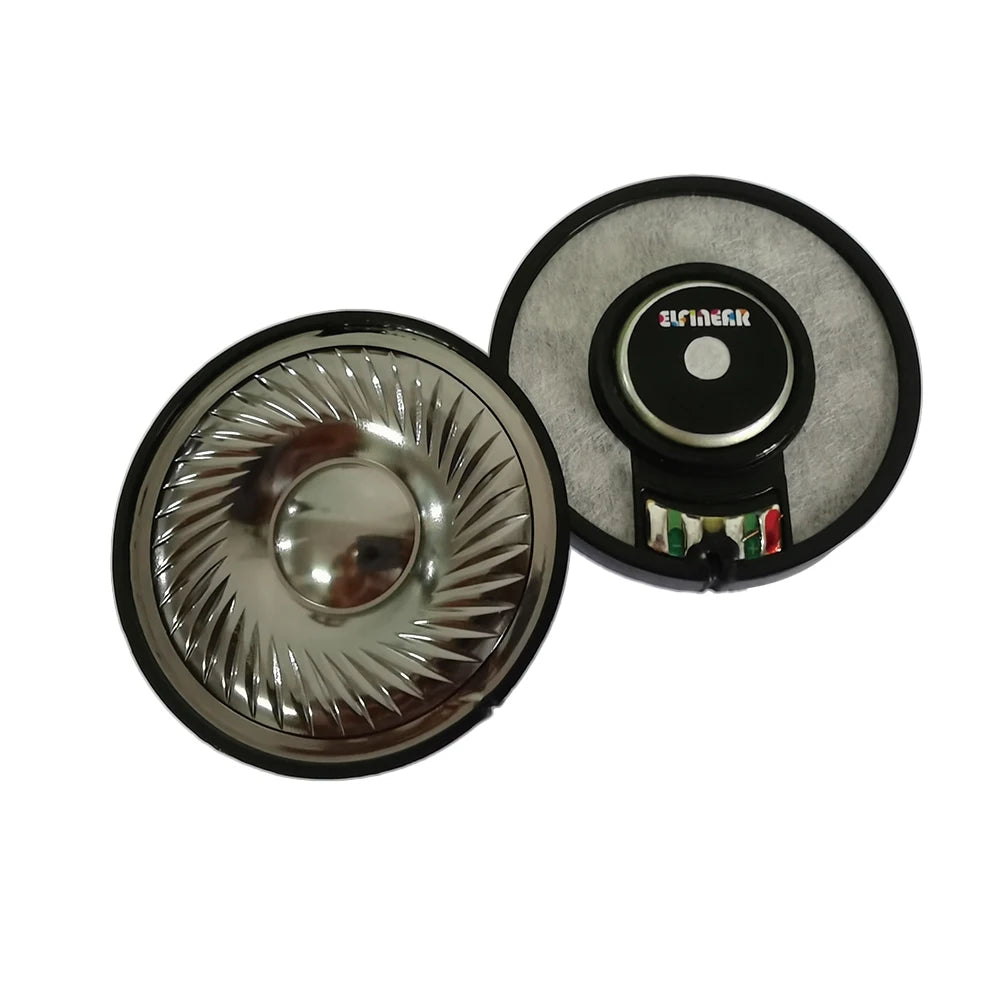

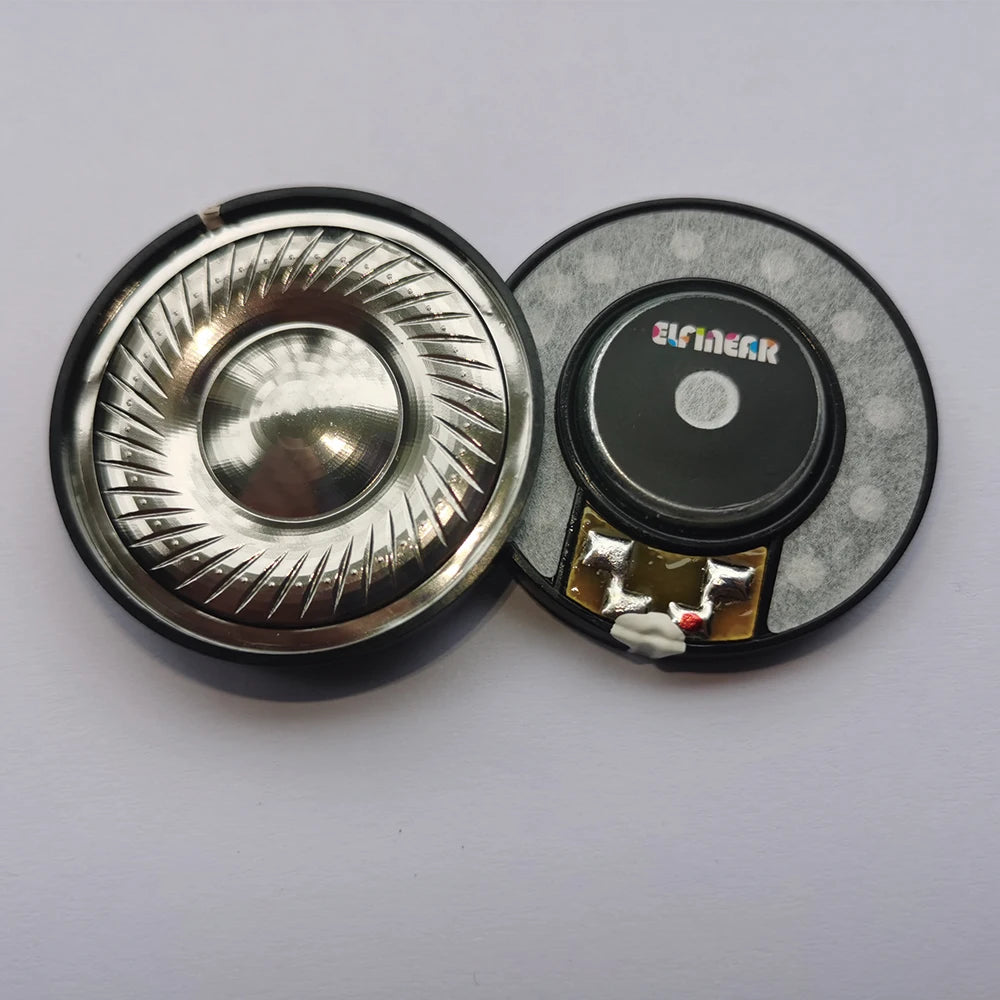

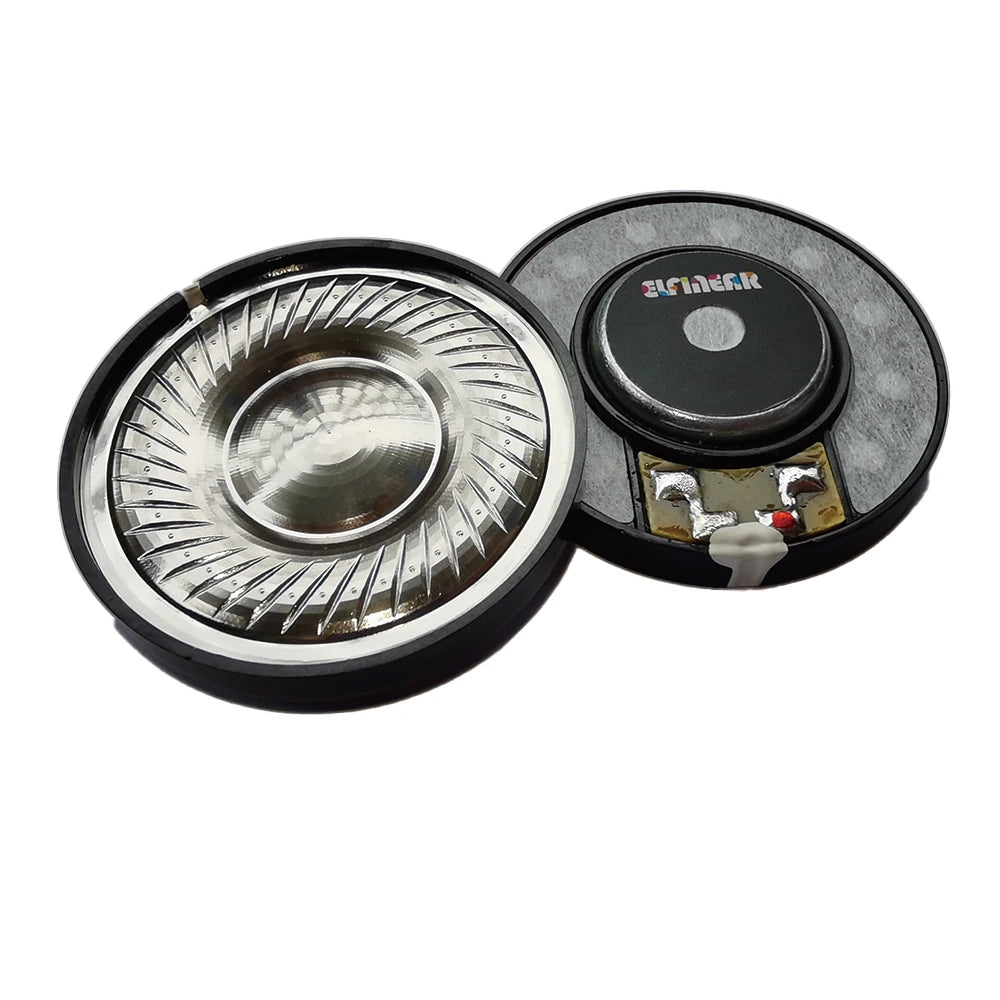

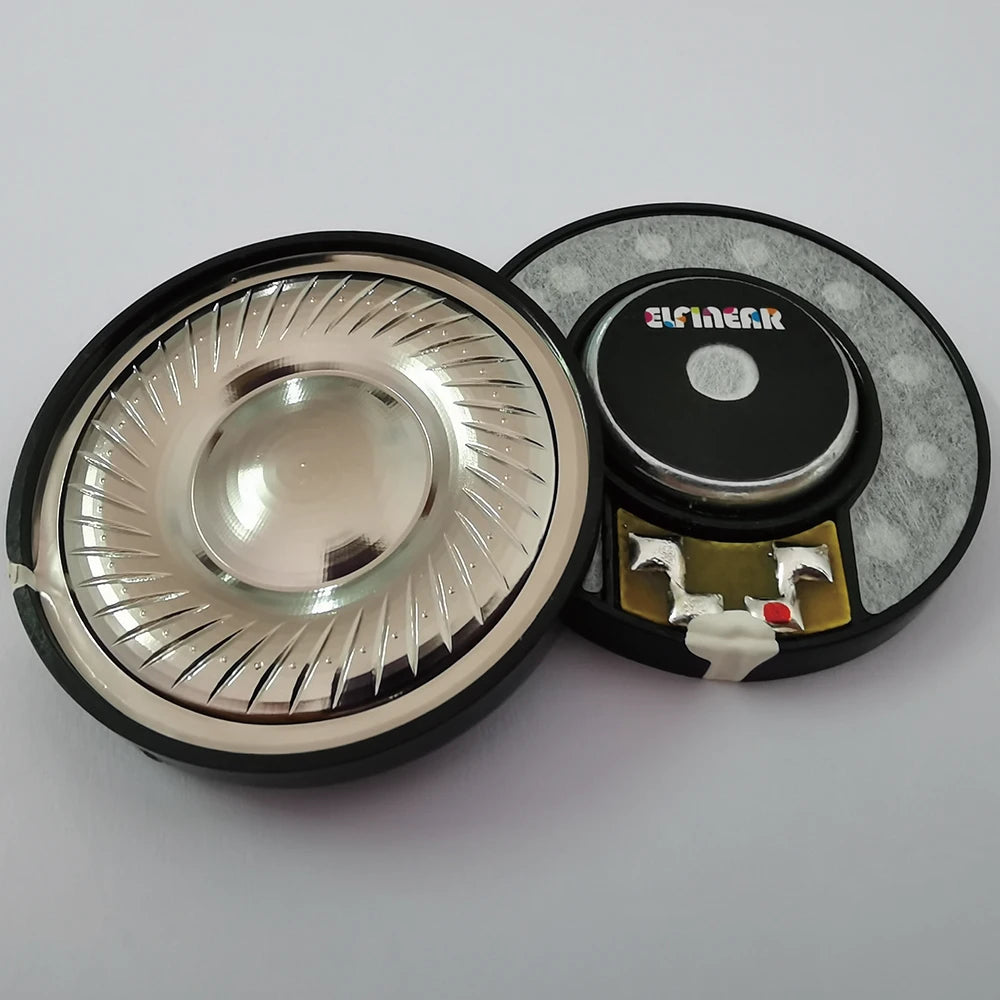

40MM Speakers
